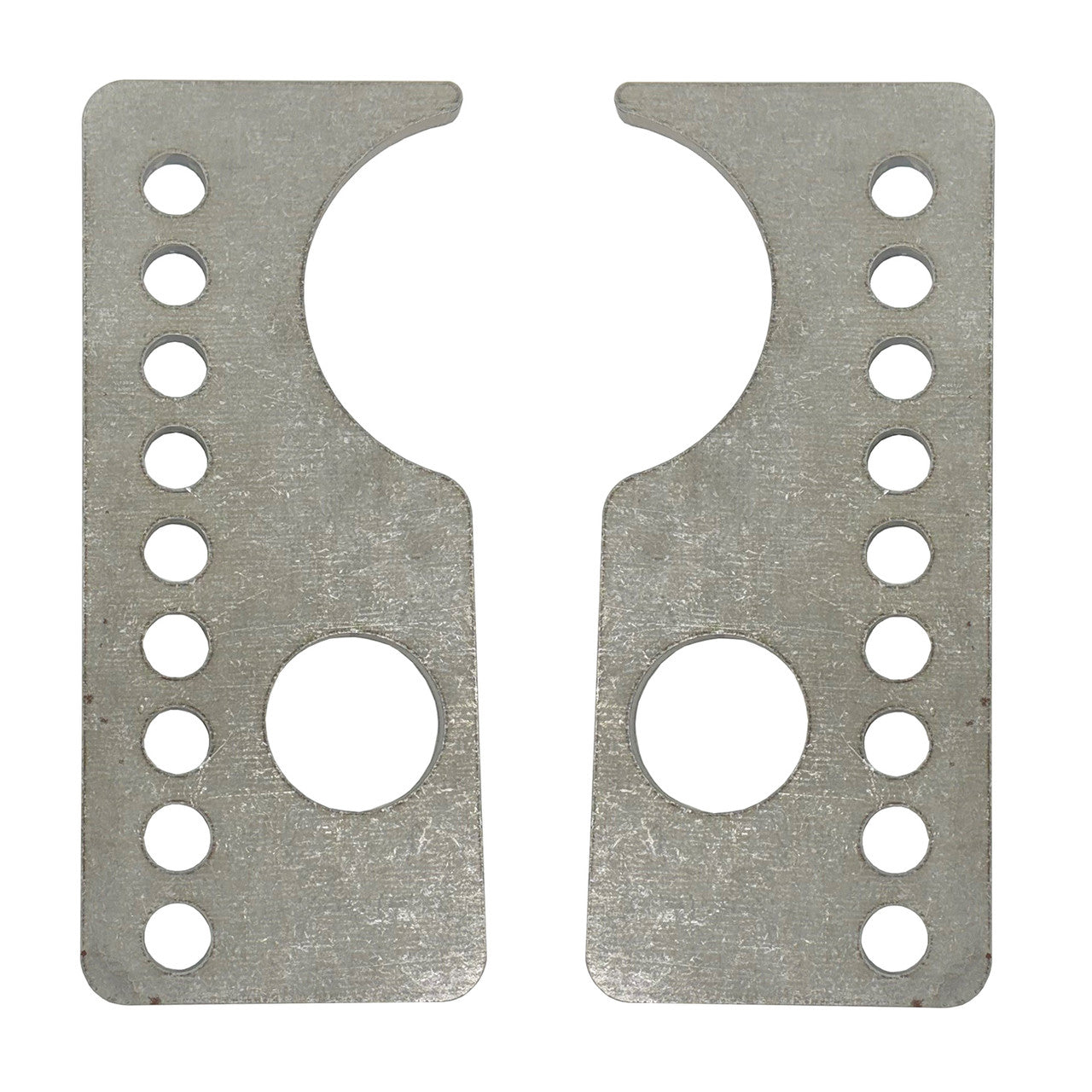

Rear Shock Mount Axle Brackets 8.8" Fabricated 9"

    UPR Shock Mount Axle Brackets are used in our weld in rear coil over kits and are made for both Mustang 8.8" with a 2.80-2.88" axle tube and for Fabricated 9" housing with a 3.00-3.08" diameter axle tube. Laser cut from 1/4" thick Mild Steel.

If you are unsure if your 8.8" is from a Mustang measure the diameter of the tube as the Truck and SUV 8.8 axles have a larger diameter axle tube and these brackets will NOT work. Ford 9" from factory vehicles have varying axle tube diameters so be sure to measure before purchasing. Most aftermarket companies making fabricated 9" housing for drag racing use 3" diameter axle tubes.

Same axle brackets used in UPR part numbers 2006-120, 2006-121, 2006-124, 2006-125

Requires welding

Product Features:

» Sold in Pairs
» Laser Cut 1/4" Thick Mild Steel
» Shock Mount Brackets use 1/2" Hardware
» Shock Mount Brackets have 3/4" spacing center to center
» 9" Brackets fit Axle Tubes up to 3.00-3.08" Diameter
» 8.8" Brackets fit Axle Tubes up to 2.80-2.88" Diameter
» Available for Mustang 8.8" and Fabricated 9" Axle Tubes - Select Above

Fits These Vehicles:

1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 Ford Mustang LX GT GTS 4.6 5.0 5.8 281 302 351 Cobra Bullitt Mach 1

Universal fit for axle tubes measuring 2.80-2.88" or 3.00-3.08" diameter. Some Factory 9" and most Fabricated 9", GM 8.5 10 Bolt (full size truck and car, not S10), GM 12 Bolt

Made in the USA!
