x So you’re looking for a catch can kit for your vehicle, but can’t find exactly what you’re looking for? UPR has the answer! In addition to our large selection of Plug and Play kits, UPR offers the do-it-yourself Build-your-own kits.
The DIY kit will allow you to custom build a catch can system for your Car, Truck, Jeep, SUV, Jet ski, Snowmobile, etc. Once you determine the location of the PCV valve or crank case port and a source of manifold vacuum or high velocity intake air, you can use the kit to custom fit an efficient, high quality UPR Billet catch can to your ride!
Brand new Universal Aerospace Racing Billet Catch Can Kit. Developed to eliminate oil from entering your intake by engine blow-by, which channels oil and trash into your direct air stream from the valve train. This is a common problem on both brand new performance and especially older engines, which just suffer more from blow by due to wear and tear. The most common problem is making your car emit light blueish white smoke upon start up or even during normal driving. The throttle body handles your main air stream and has a breather tube running from the crankcase to the throttle body. The vacuum from the incoming airstream and positive pressure in the crankcase combine to get oil in the air tract. Every car and vehicle is set up this way to help eliminate the pressure build-up in the bottom end of your engine enabling the piston to move up and down with less resistance. These catch cans feature a containment system and separator that force all the debris to get captured and contained in the filter while still allowing airflow thus maintaining full function of the breather system. This catch can has been long awaited and is one of the most needed items for the late model performance world. We have had countless customers install our new Aerospace Mustang Billet Catch Can and get immediate results in both idle quality and vehicle performance. Another key problem caused by oil in the intake is that it reduces the octane of your fuel and causes detonation especially in turbo, supercharger and nitrous applications.
The long L bracket is 2 7/8" overall length . The short L bracket is 1 1/2" overall.
The Fender mount is a short L bracket with a flat 'fender' bracket attached to it.
The Round Mount has a 10mm tapped hole and is 1 3/4" long off of the side of the catch can.

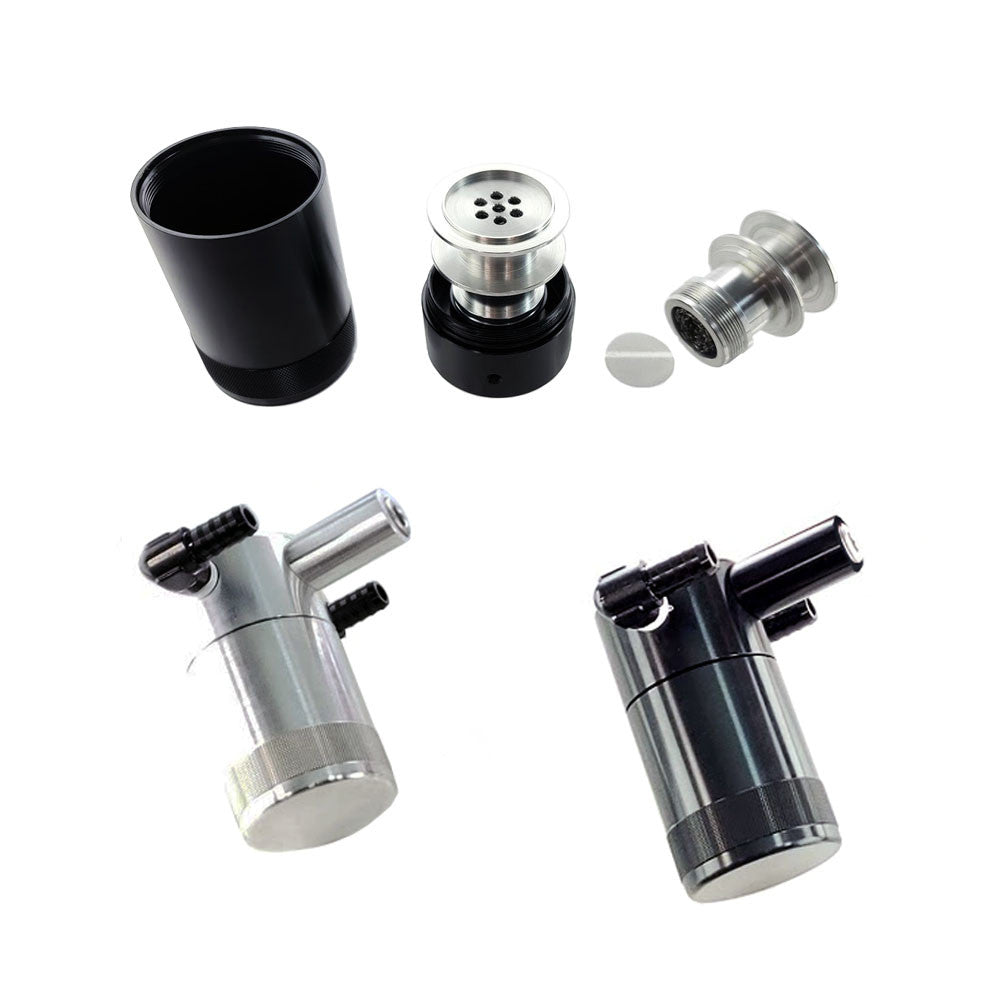

Installs in 20-30 minutes or less. The UPR Oil Catch Can features a three chamber design CNC machined from 6061 Billet Aluminum unlike some of our competitors models that are single chamber tanks that don't properly trap the oil or debris.
THIS PART DOES NOT CARRY AN CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED
Product Features:
» Show Quality Finish
» Can measures 4.75" x 2.5"
» Easy 20-30 minute installation
» Prevents Oil from Entering Intake
» Stainless Steel Mesh Filter Material
» 3/8", 1/2" or 5/8" Nickel 90* fittings
» Your choice of Bracket - Select Above
» Improves Fuel Economy & Performance
» High Quality CNC Machined Billet Aluminum
» 3/8", 1/2" or 5/8" Oil Resistant Hose included
» Can measures 4.75" x 2.5"
» Easy 20-30 minute installation
» Prevents Oil from Entering Intake
» Stainless Steel Mesh Filter Material
» 3/8", 1/2" or 5/8" Nickel 90* fittings
» Your choice of Bracket - Select Above
» Improves Fuel Economy & Performance
» High Quality CNC Machined Billet Aluminum
» 3/8", 1/2" or 5/8" Oil Resistant Hose included
» New 3 Chamber Diffuser with SS Coalescing Media
» Available in Satin Silver, Black, Blue or Red - Select Finish Above
» Available in Satin Silver, Black, Blue or Red - Select Finish Above
Fits These Vehicles:
Fits most makes and models.
Made in the USA!
