Strange Pro Series Front Brake Kit with 4 Piston Calipers & Slotted Rotors for 94-04 Ford Mustang Spindle B4146WC

Front Heavy Duty SN95 Drag Brake Kit (1994-2004 Mustang ALL)

This Strange Strange Pro Series Heavy Duty Front Brake Kit Fits 94-04 Mustang 5 LUG 4 1/2 inch bolt circle applications. This includes the Mustang Cobra as well. A small modification of the factory caliper mounting ear must be made for fitment.

Compared to abysmal OEM Mustang brake components the Strange front brake kit offers a large weight savings and shorter stopping distances.

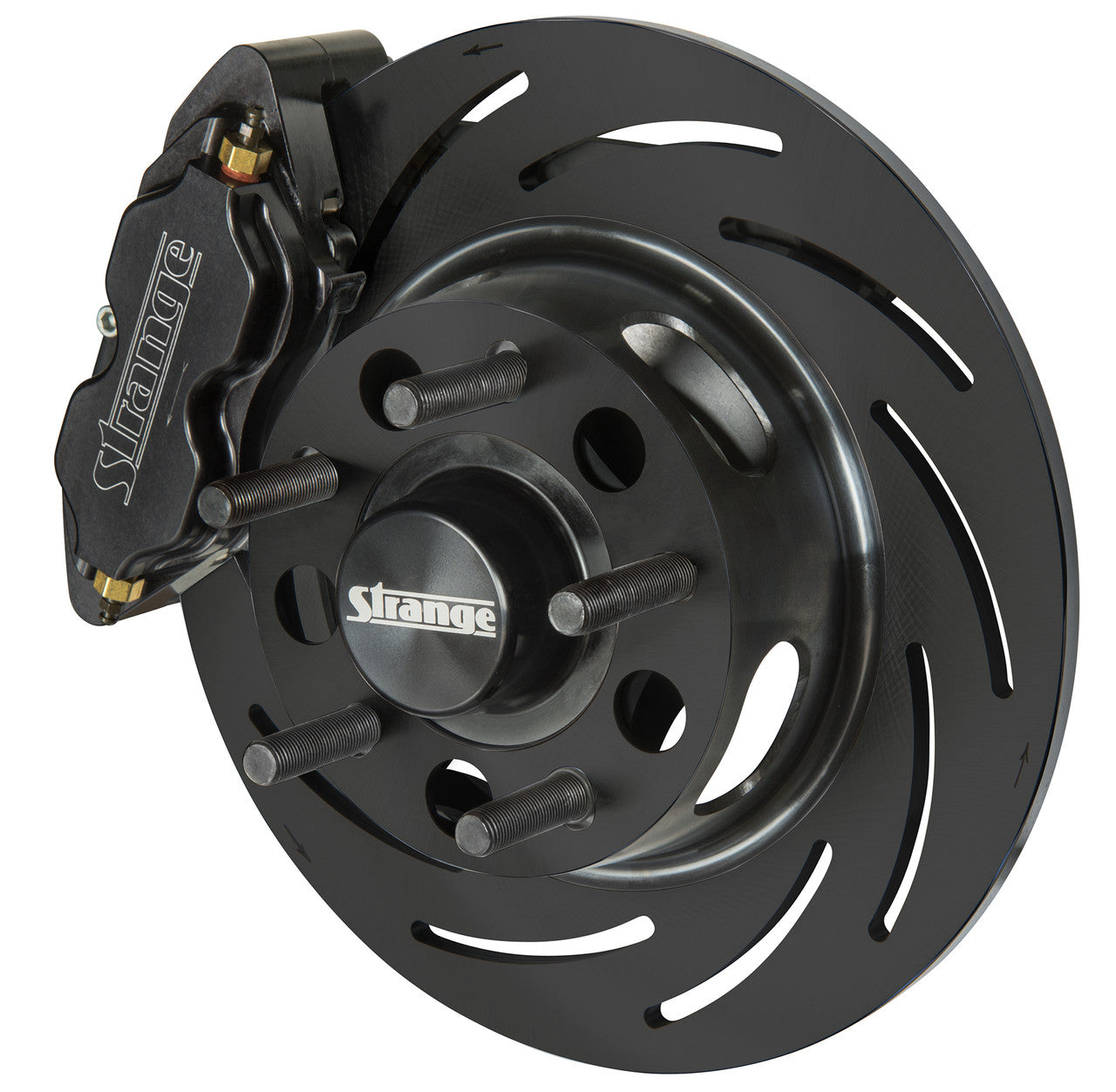

Our 94-04 Mustang drag brakes are unsurpassed in detail. This front brake kit comes complete with forged steel rotors, metallic brake pads, 4 piston heavy duty calipers, billet caliper mounts, 4 1/2″ bolt circle forged aluminum hubs with lightening holes, and all necessary mounting hardware.

One example of our unparalleled attention to detail is evident in our hub design. Each hub has one bolt circle. Instead of adding an additional bolt circle, the hub is scalloped and lightening holes are milled to reduce rotating weight. The hub cap is fully machined and hollowed out to maximize weight reduction. We feel that the extra effort into weight reduction is expected from customers who want a premium quality Drag Racing brake kit.

Our 4 piston calipers are designed with stainless steel corrosion resistant 1.625″ and 1.750″ pistons to vary pressure on the pads decreasing pad taper as well as increasing clamping force.

Fits Model Year: 1994 Mustang, 1995 Mustang, 1996 Mustang, 1997 Mustang, 1998 Mustang, 1999 Mustang, 2000 Mustang, 2001 Mustang, 2002 Mustang, 2003 Mustang, 2004 Mustang

Designed Specifically For Drag Racing

Application
1994-2004 Mustang Using Factory Disc Brake Spindles

Note
Requires one caliper mounting ear to be cut off each spindle

One Piece Forged Steel Rotors – B2795 / B2796
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• Hat section drilled & milled to further reduce weight

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

DTC-30 Semi Metallic Brake Pads – B5010
• Best compound suited for front application
• Excellent cold holding capabilities

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Billet Aluminum Hubs
• Strong lightweight material
• Scalloped for enhanced weight reduction
• Billet hub caps with O-rings
• Sealed ball bearings

Screw-in Wheel Studs – A1028
• Tapered allen 1/2″-20 x 2 1/2″
• Standard allen in 3″ available on request

All Necessary Mounting Hardware

Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
