Designed Specifically For Drag Racing

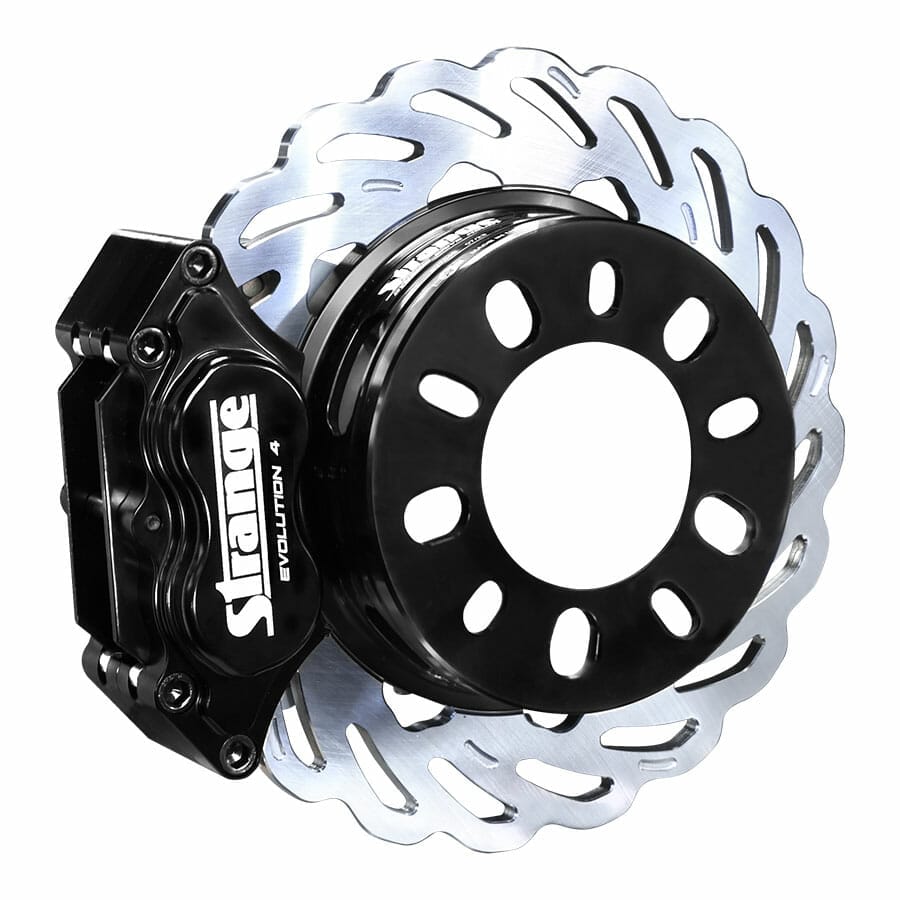

Evolution Rear Brake Kit
For 2015-2023 Mustang GT

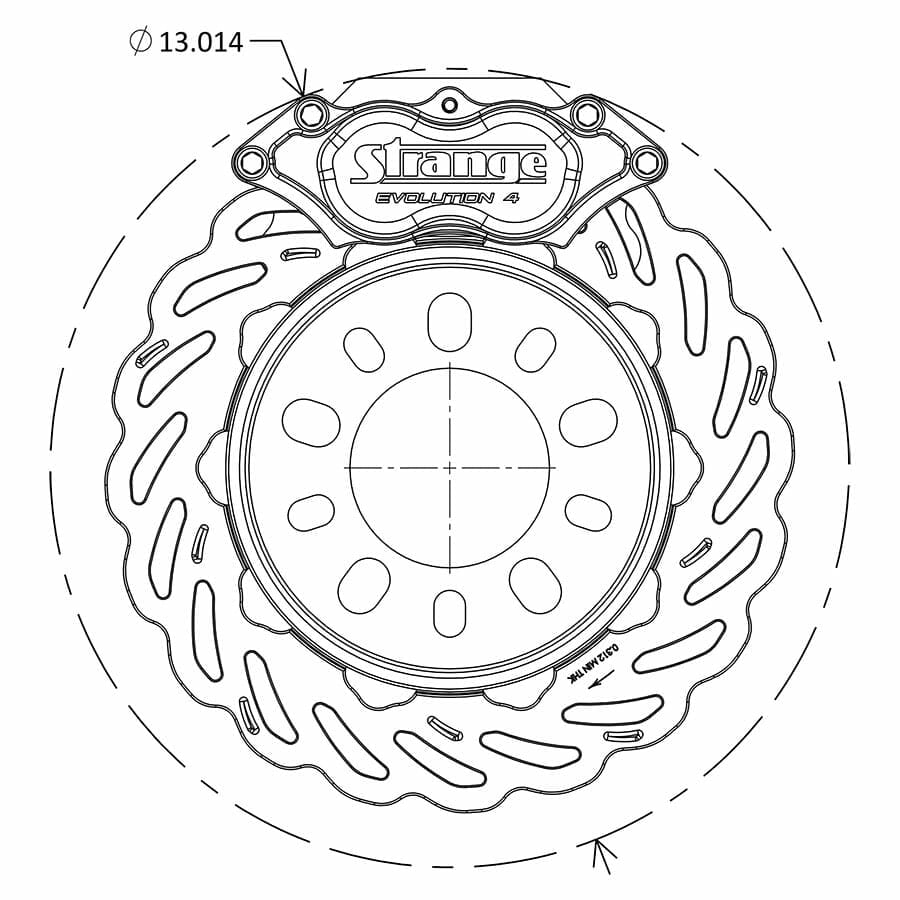

Evolution S Dynamic Drive Mount Stainless Steel Rotors – B2798L / B2798R

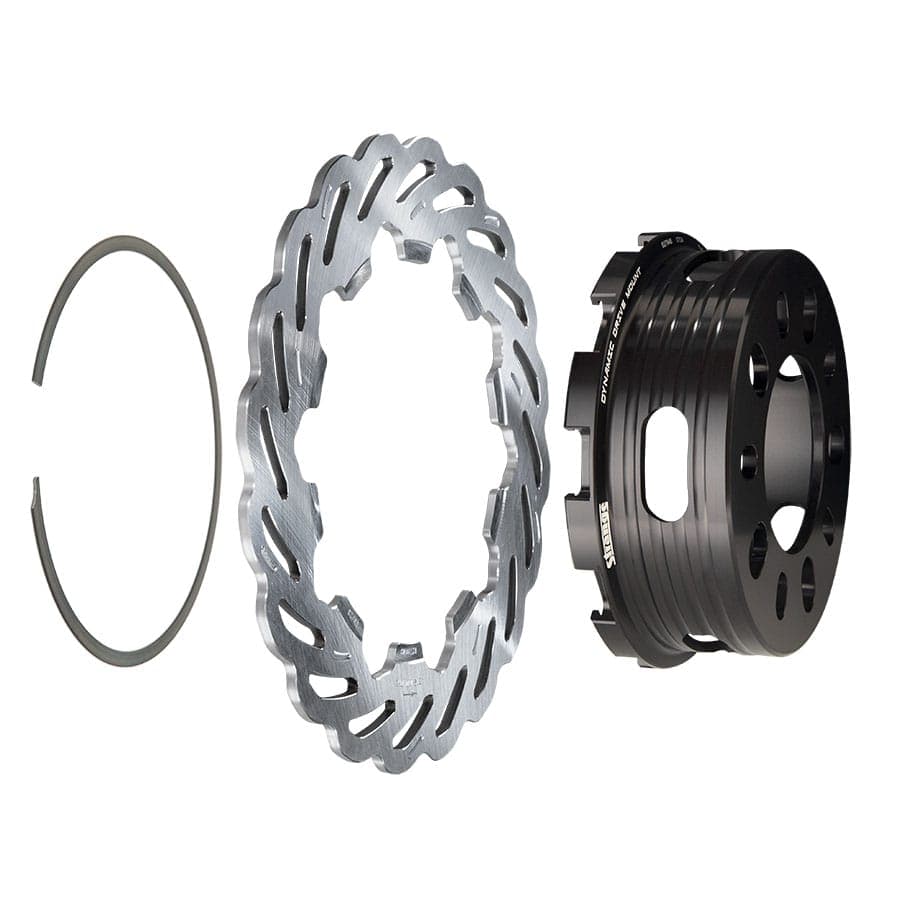

• Evolution S Rotor mounts to billet aluminum DDM hat reducing rotating weight
• DDM system secures the rotor and allows for rotor thermal expansion
• Drastically reduces warping, coning and cracking common with bolt retention
• DDM system design is secured by an internal Spirolox
• Eliminating heavy bolts and hardware that further reduces rotating weight
• Evolution S rotors are machined and fully ground from premium stainless steel
• Exhibits 48% greater yield strength at 1,000° F compared to carbon steel
• Further maintaining rotor integrity and trueness
• Evolution S rotors are highly resistant to both heat and corrosion
• Unique Aero Slot design reduces rotating weight
• Promoting even heat dissipation compared to common round drilled holes
• Scalloped design further reduces rotating weight
• 11.250″ O.D. / .355″ thickness

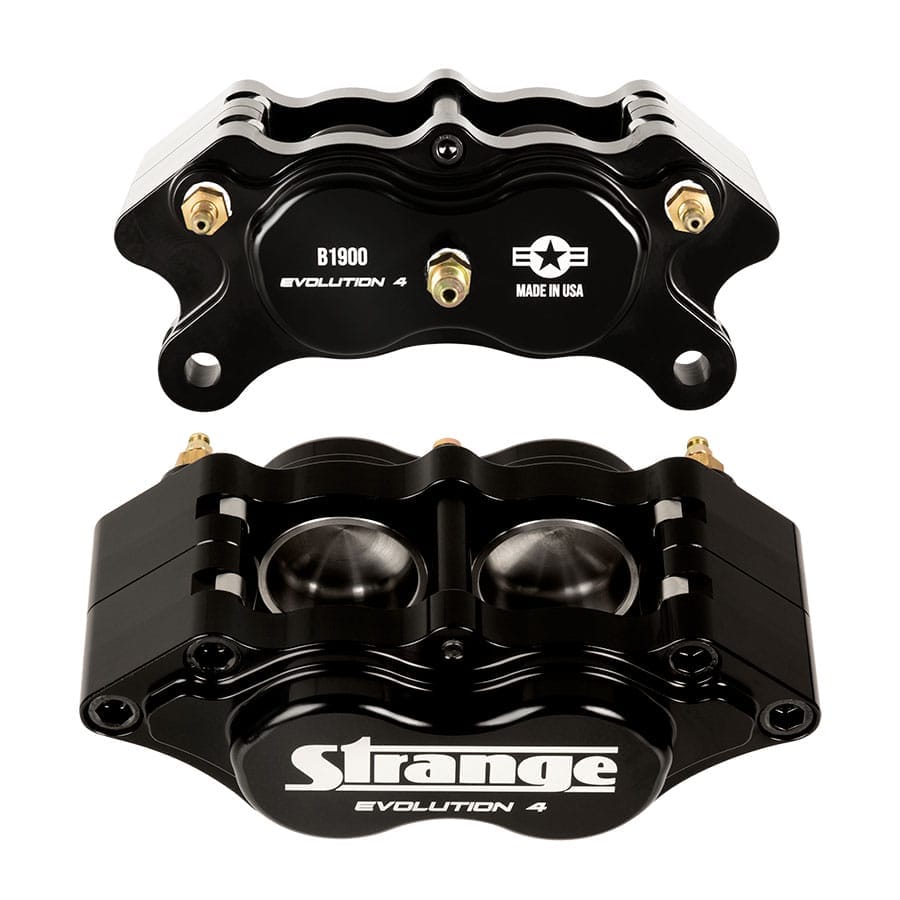

Four Piston Billet Evolution 4 Calipers – B1900
• Computer finite element analysis (FEA) optimized and field-tested caliper
• Evolution 4 design improves piston retraction, pedal feel, and stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• Results in improved pad wear and exemplary braking efficiency
• Stainless steel pistons mitigate heat transfer to brake fluid
• All 1.750″ pistons provide maximum clamping force
• Two bleeder screws ensure complete air evacuation
• Type II Black anodized finish resists corrision, heat & brake fluid
Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

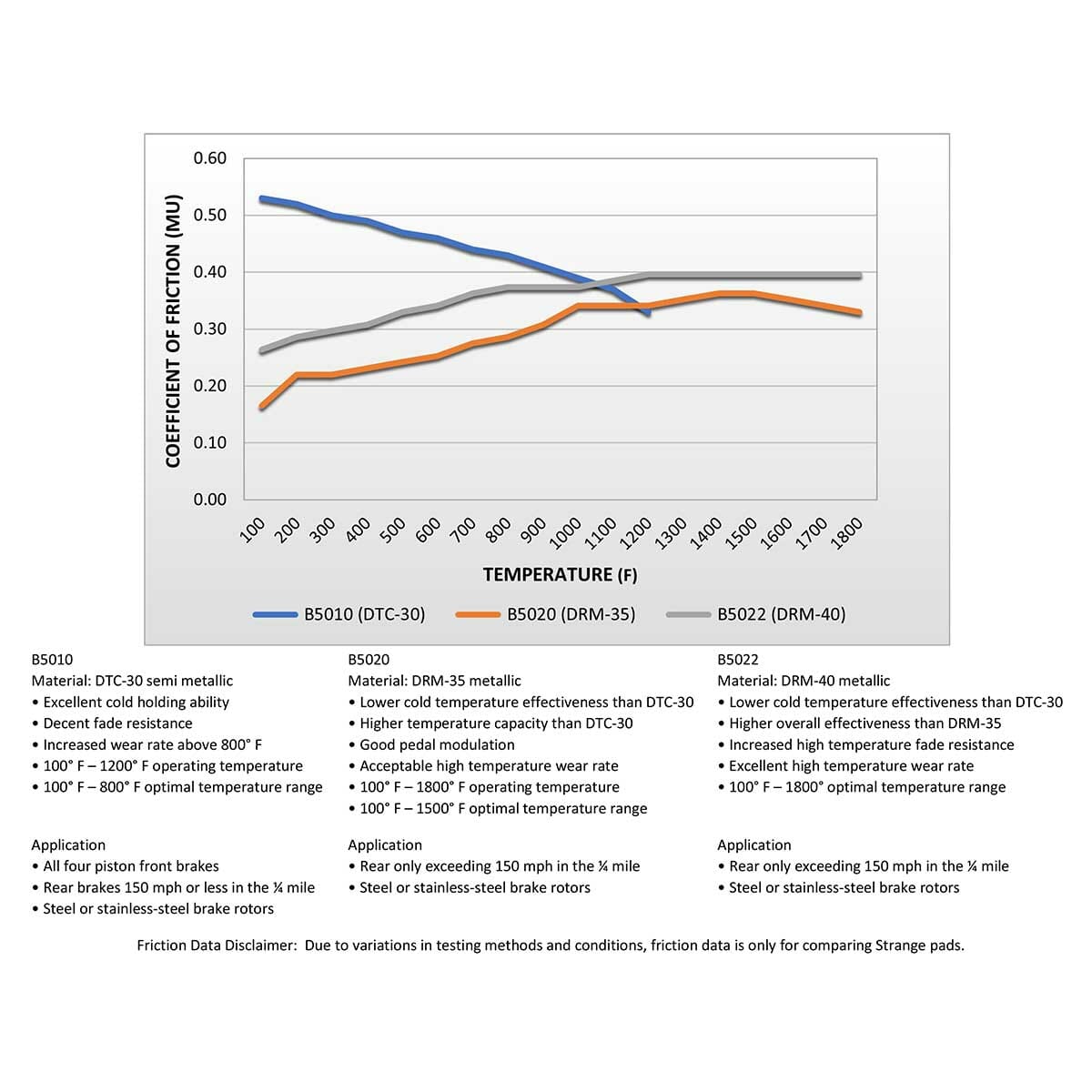

DTC-30 Semi Metallic Brake Pads – B5010
• Provides the best starting-line cold holding power
• Recommended for vehicles going 150 MPH or less in the 1/4 mile

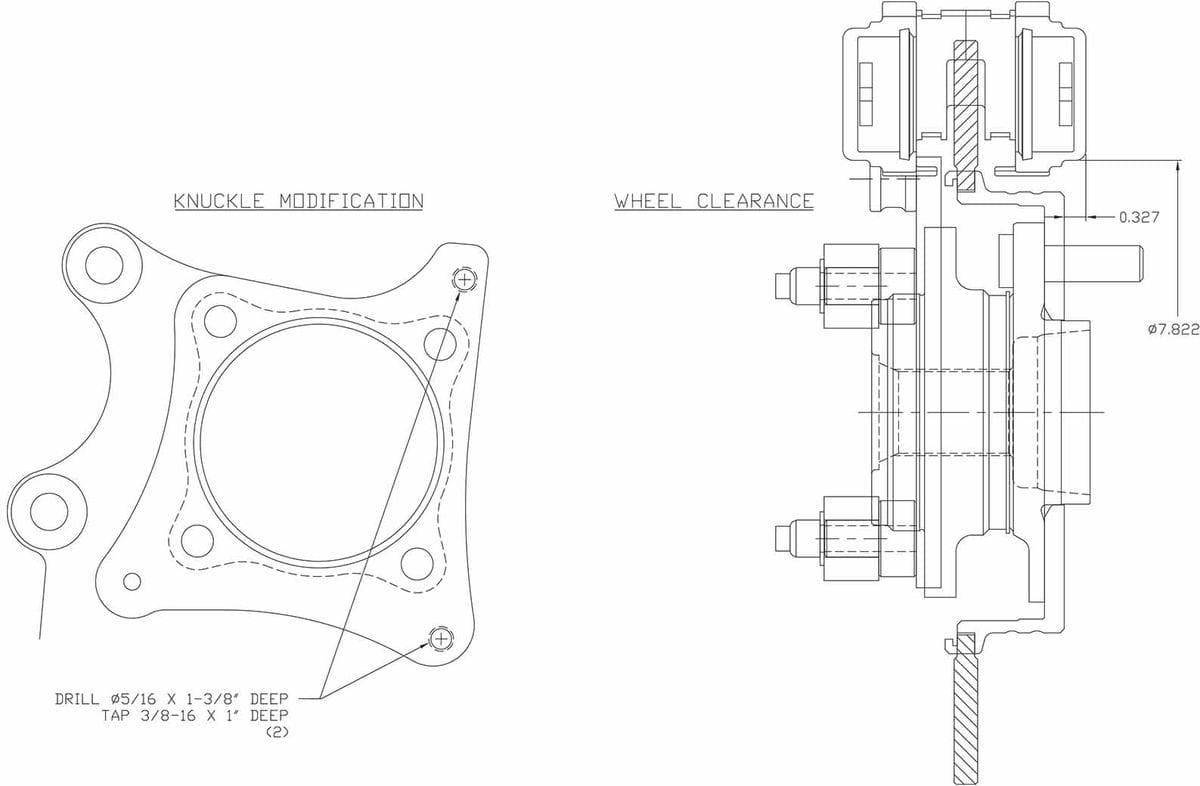

Requires
Drilling Existing Knuckle Holes 5/16″ x 1.375″ Deep
Tapping 3/8″-16 x 1″ Deep
Evolution Low Profile Caliper Option – OPRB12
Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
