Alloy axle packages are optimized for street & track use
See our Hy-Tuf (Pro Race) axles for maximum torsional strength for all out Drag Racing

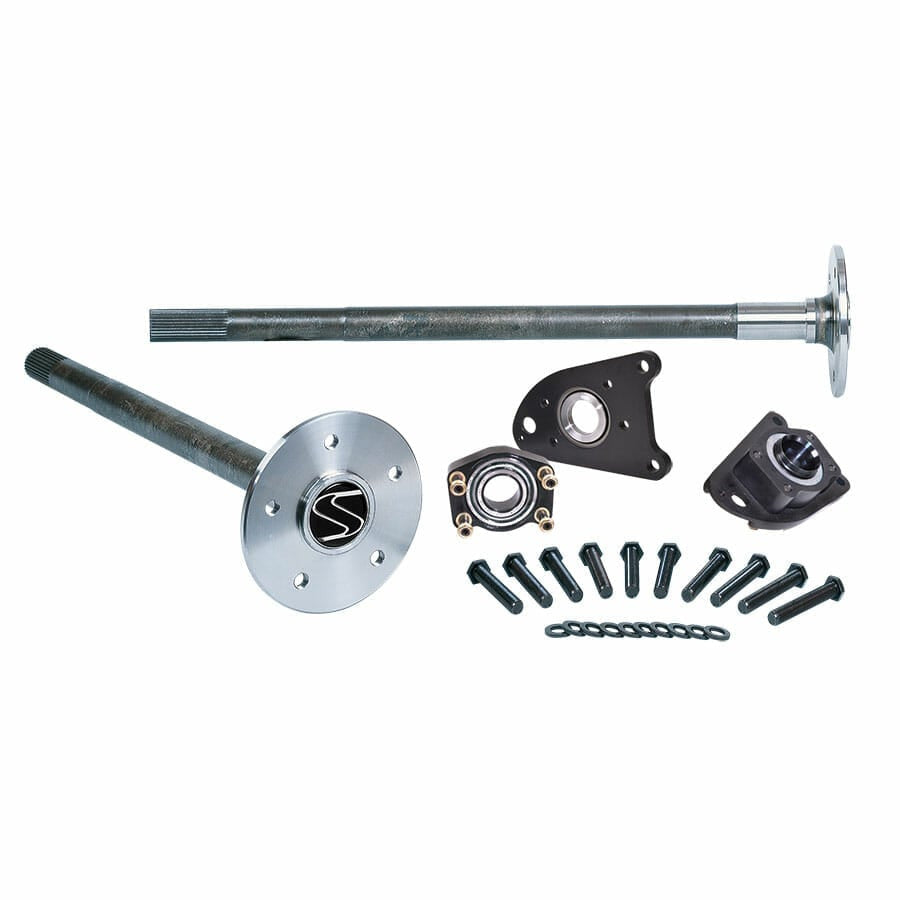

Package Includes
Alloy Axles – A3100
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat to provide consistent hardness
• Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
• Finish machined after heat treat to ensure accuracy
• 31 spline
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA
C-Clip Eliminator Kit – A1094 GT brakes / A1095 Cobra brakes
• Billet aluminum caliper mounts to accept OEM brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts
Choice of Press-in or Screw-in Wheel Studs
• Press-in 1/2″-20 OEM style studs in factory length – A3121
• Screw-in 1/2″-20 chrome moly studs in 2″ or 3″ long – A1025 / A1026
• Screw-in studs include .060″ hardened washers
• Length is measured from underneath the hex of the stud
Notes For ABS
This kit will not work with factory reluctor rings – See custom rings below
Read instructions carefully beforehand as assembly order is crucial
Options
Custom 94-04 reluctor ring – each…………… A1094E
Labor Only
Install eliminator kit…………………………………. A1008C
Install eliminator kit & studs…………………… A1008SC
Install studs, reluctors & eliminator kit….. A1008SRC
