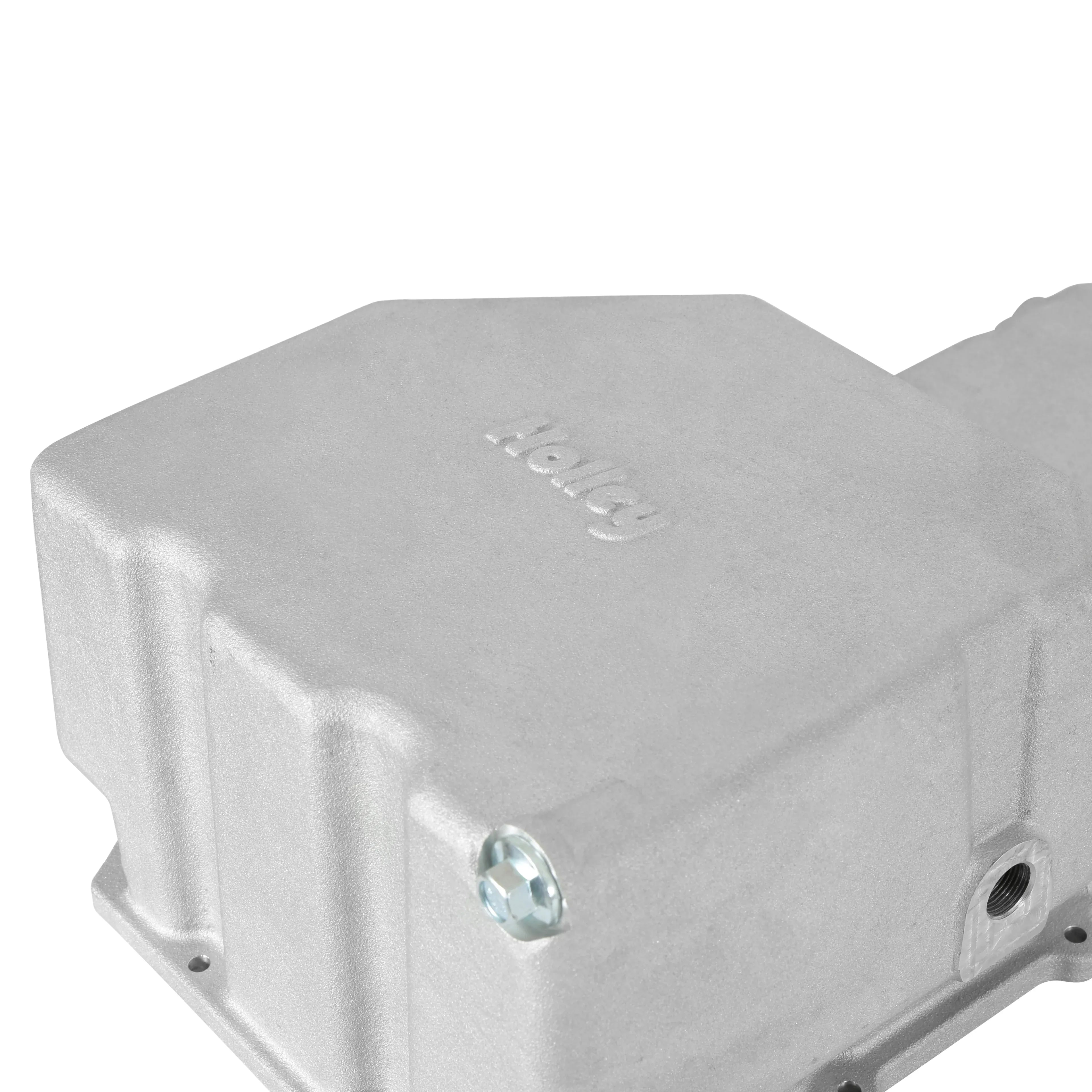

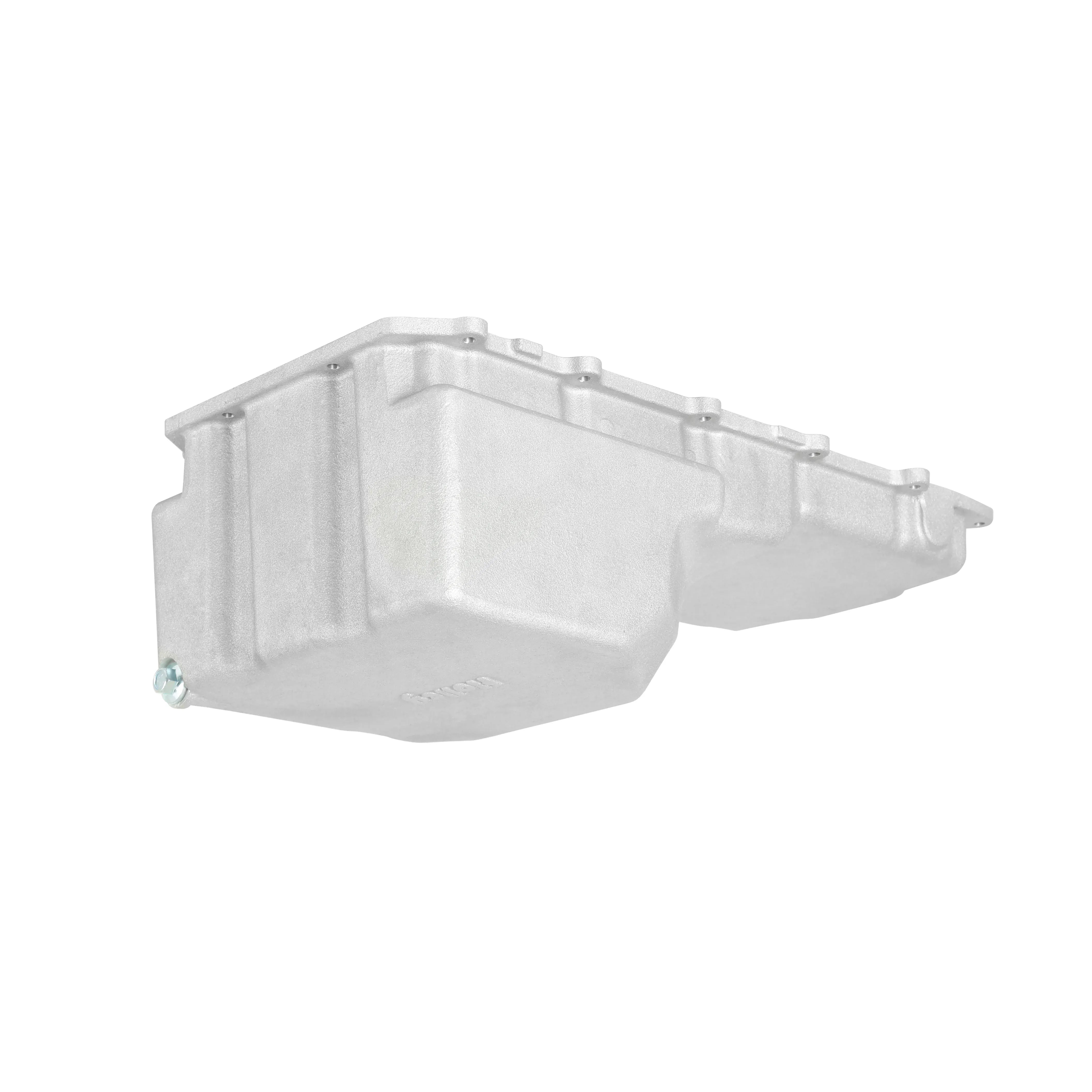

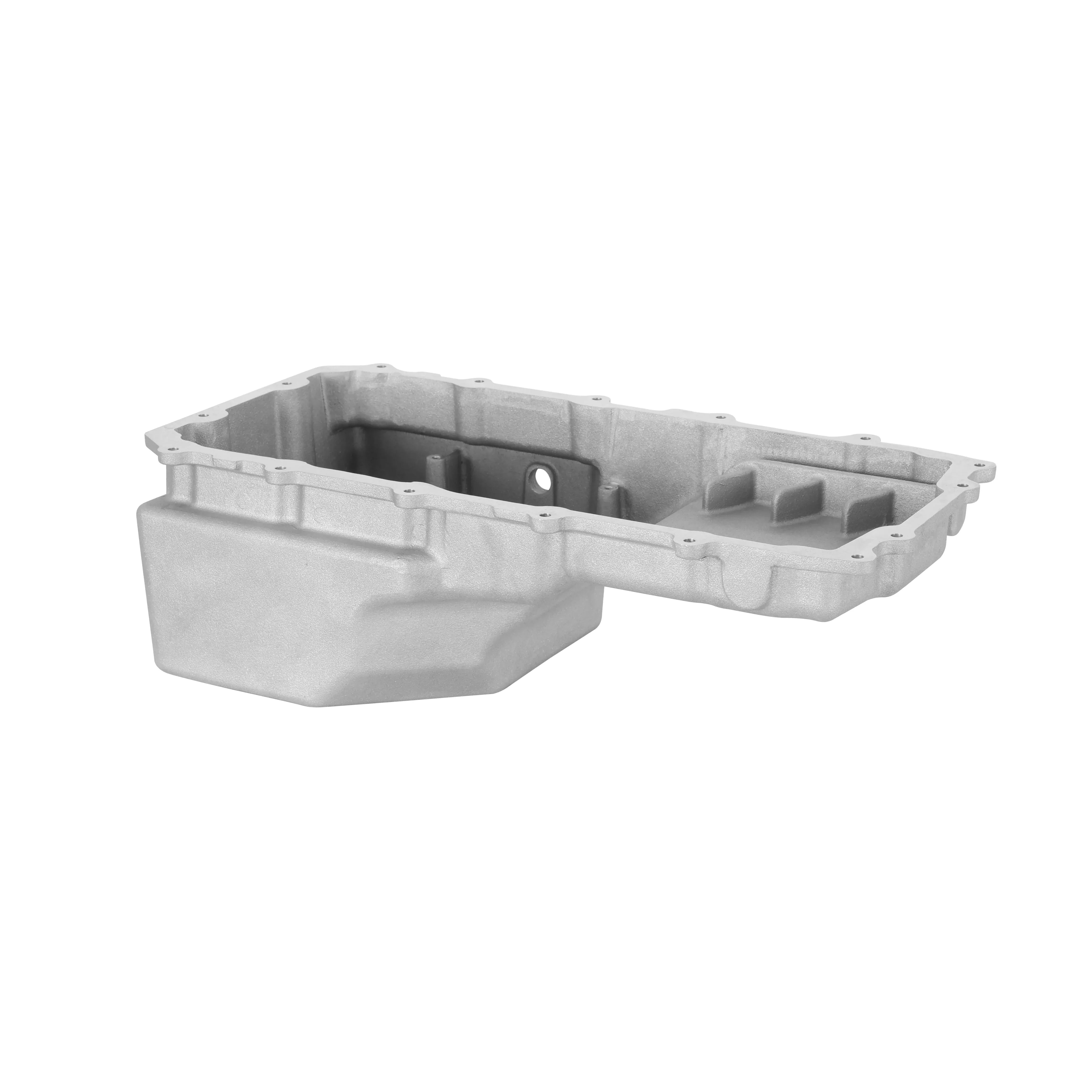

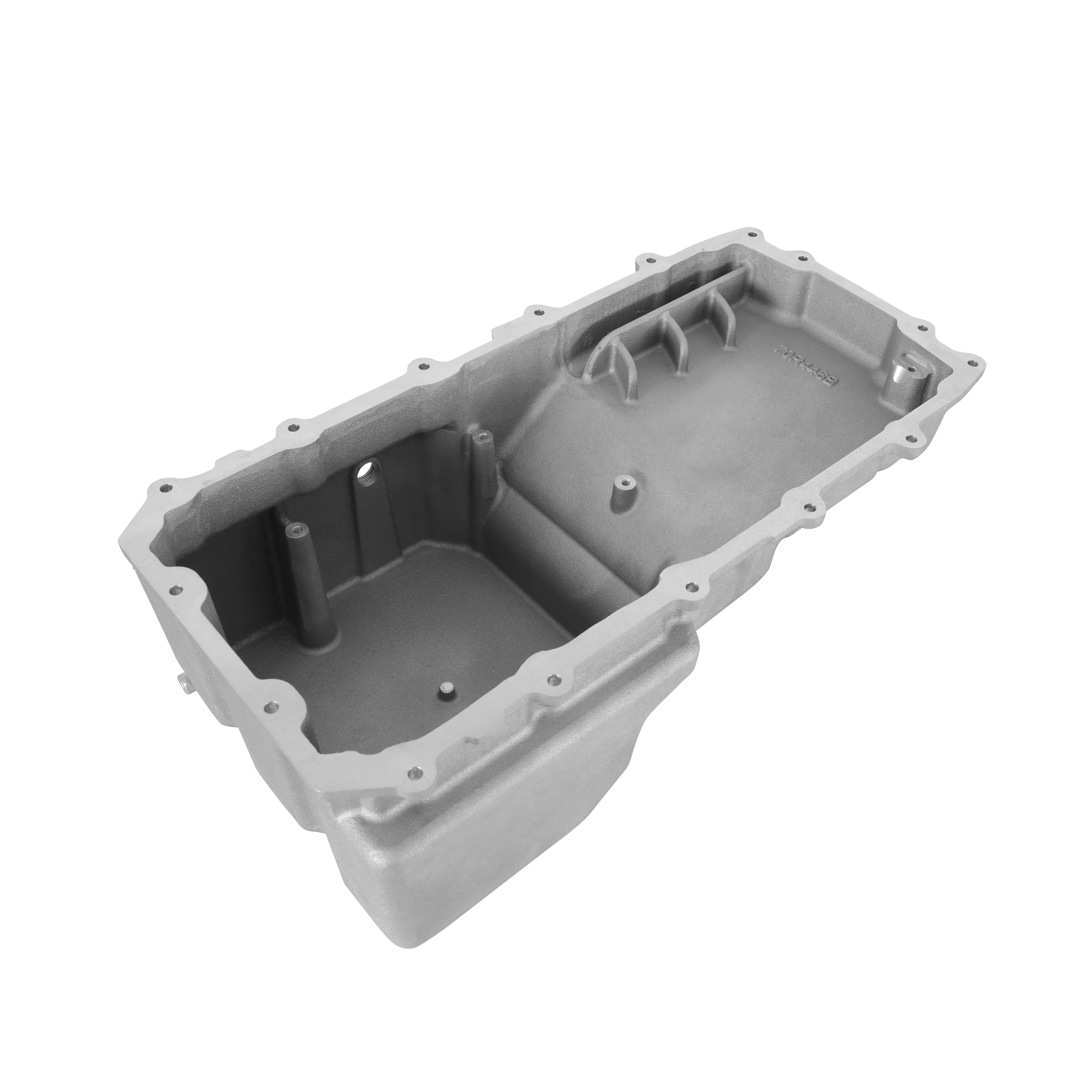

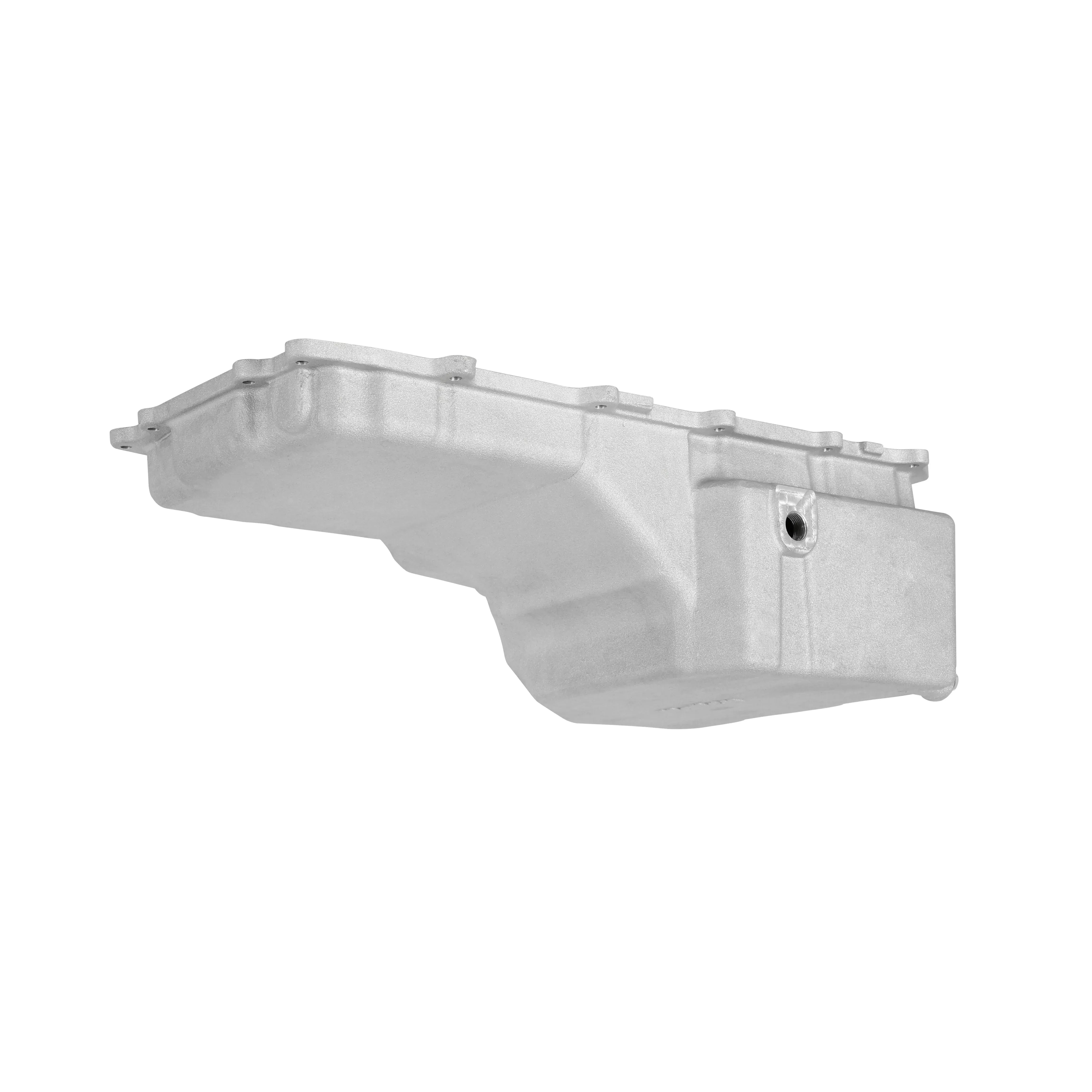

Holley Cast Aluminum Rear Sump Coyote Swap Oil Pan Gen 1 & 2 (fits 79-04 Mustang) 302-47

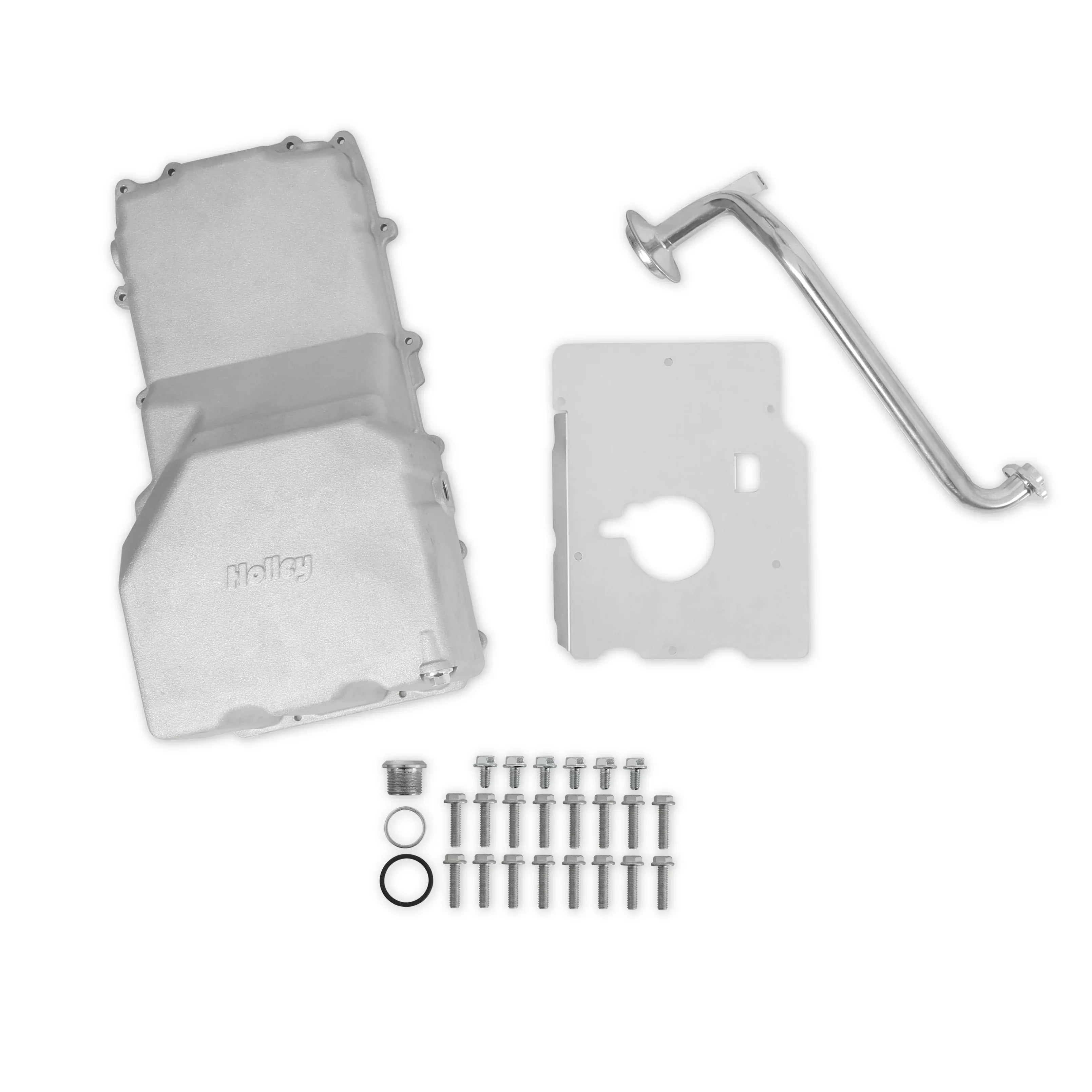

Holley's new Gen1/Gen2 Coyote oil pan makes your Ford Fox-Body Mustang swap easier. The oil pan design provides a healthy oil capacity of of 9.0 quarts (9.5 w/ stock filter) to ensure adequate oil supply in all street performance and factory-stock type racing applications. The new design installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics. A proprietary design pick-up tube/O-ring and lower sump baffle plate are included as well as two drain-back bosses (unmachined) for turbo applications or catch can returns. The 302-47 was specifically designed to enable Coyote Gen 1 and 2 engine swaps in 1979-2004 Ford Fox-Body Mustangs using a stock (1984-2004), AJE MU40-UM, Team Z Motorsports TZM-KM-SWAP, or Maximum Motorsports MMKM-2.1 (for Fox Body cars) or MMKM 2 (for SN95/New Edge cars) K-member and Hooker Blackheart engine mounting brackets. This pan is not compatible with the Maximum Motorsports MMKM-1 K-member. The unique fitment geometry of this pan may also be suitable for use in other fitment challenged Coyote swap applications. ***You may need to make a custom tool from an inexpensive 1/4" drive 10mm deep socket to torque the outer bolt of the pick-up tube assembly flange to the oil pump. Image included in instructions.
