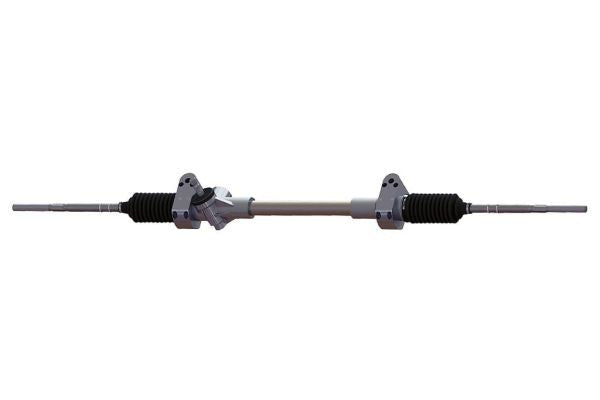

Flaming River Manual Rack & Pinion (fits 15-21 Challenger) FR1515MPR16

     This all-new manual rack and pinion design is a direct-fit unit for the 2015-2021 Challenger, also fits 2015 & 2021 Challenger Drag Pak models This rack is significantly lighter than the factory power steering system by eliminating hoses, pulleys and pumps and offers improved handling characteristics. A shorter pinion shaft allows for more clearance when working with large tube headers and engine swaps in custom applications. Made in USA.

9/16"-26 spline to 3/4" DD U Joint (FR-1709DD) required to adapt to OEM power steering shaft (not included). Some installs may require a longer steering shaft.

» Bolts to OEM Power Rack Mounts
» Overall Length 51.25", Pivot points 26.01"
» Mounting Position 18.21" center to center (.500 diameter mounting holes)

» 9/16"-26 spline to 3/4" DD U Joint (FR-1709DD) required to adapt to OEM power steering shaft (not included)

» Inner tie rod end thread M16 x 1.5, Inner tie rod end length 14.00"

Installs in 2 hours





2015 2016 2017 2018 2019 2020 2021 Dodge Mopar Challenger & Drag Pak
