DeatschWerks Adjustable Fuel Pressure Regulator

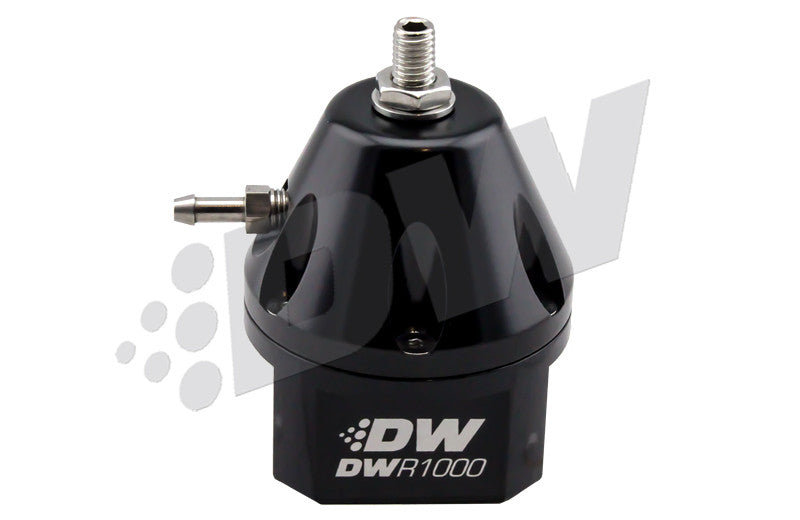

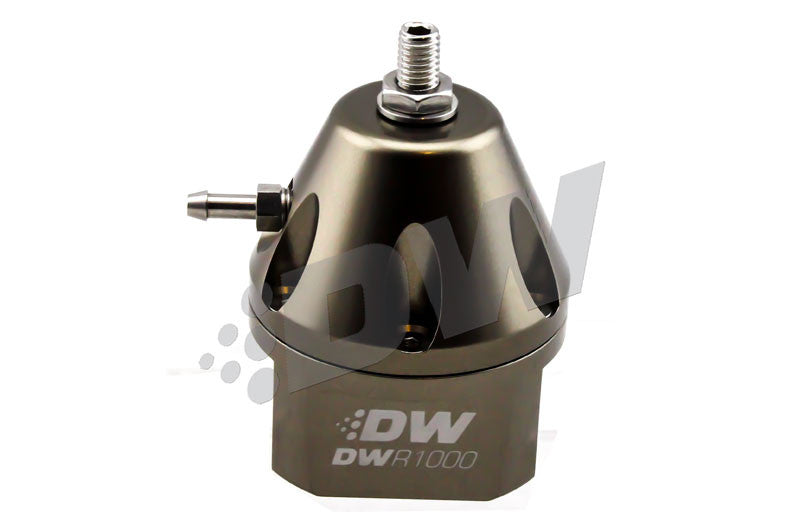

     The new DeatschWerks fuel pressure regulators provide the quality, precision and reliability your fuel system deserves. Both the DWR1000 (1000hp) and DWR2000 (2000hp) come with dual AN inlets, and a single bottom mounted AN return. Construction materials are stainless steel and anodized for ethanol and methanol compatibility. A ball-bearing mechanism allows for smooth and accurate base pressure adjustment. The large 45 mm fiber-reinforced Viton diaphragm is compatible with all fuels and provides a large surface area for increased response and precision. Regulators come with a multi-positional mounting bracket to maximize installation options, and a 1/8 NPT gauge port (sold separately).



» E85 compatibility

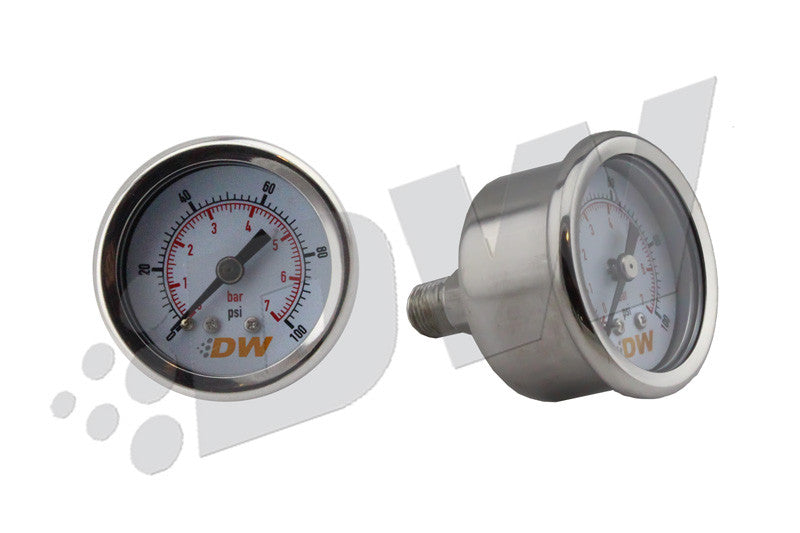

» 1/8 NPT Gauge Port
» T6061 Billet Aluminum
» Stainless & Anodized internals
» Fiber Reinforced Viton Diaphram
» DWR1000 has Dual 6AN inlets & 6AN outlet

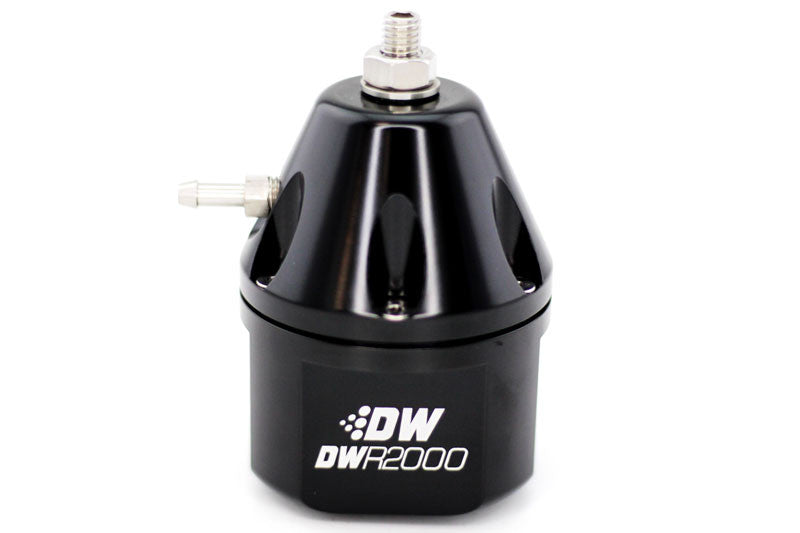

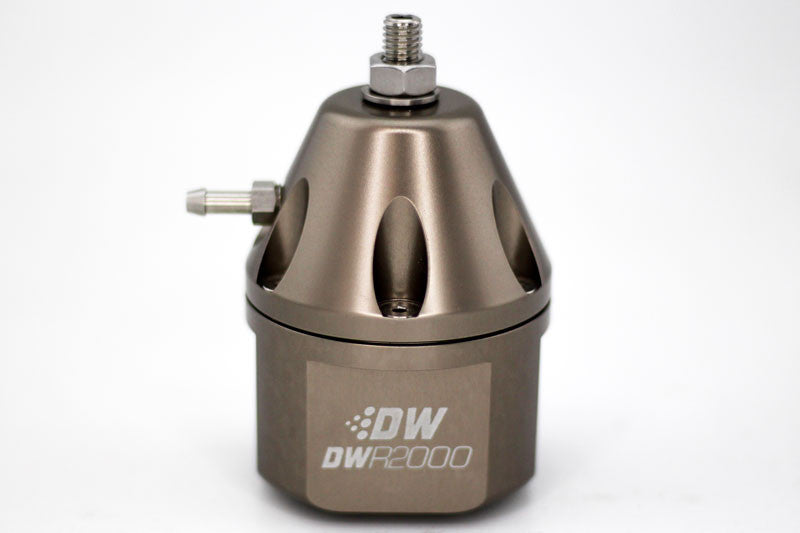

» DWR2000 has Dual 10AN inlets & 8AN outlet



Installs in approximately 30 minutes.



Click Here for DWR1000 Tech Sheet Click Here for DWR2000 Tech Sheet



Universal fit
