Billet Inline Thermostat Housing & Bypass Sensor Port 1.5" Hose (fits Ford Modular Coyote) UPR

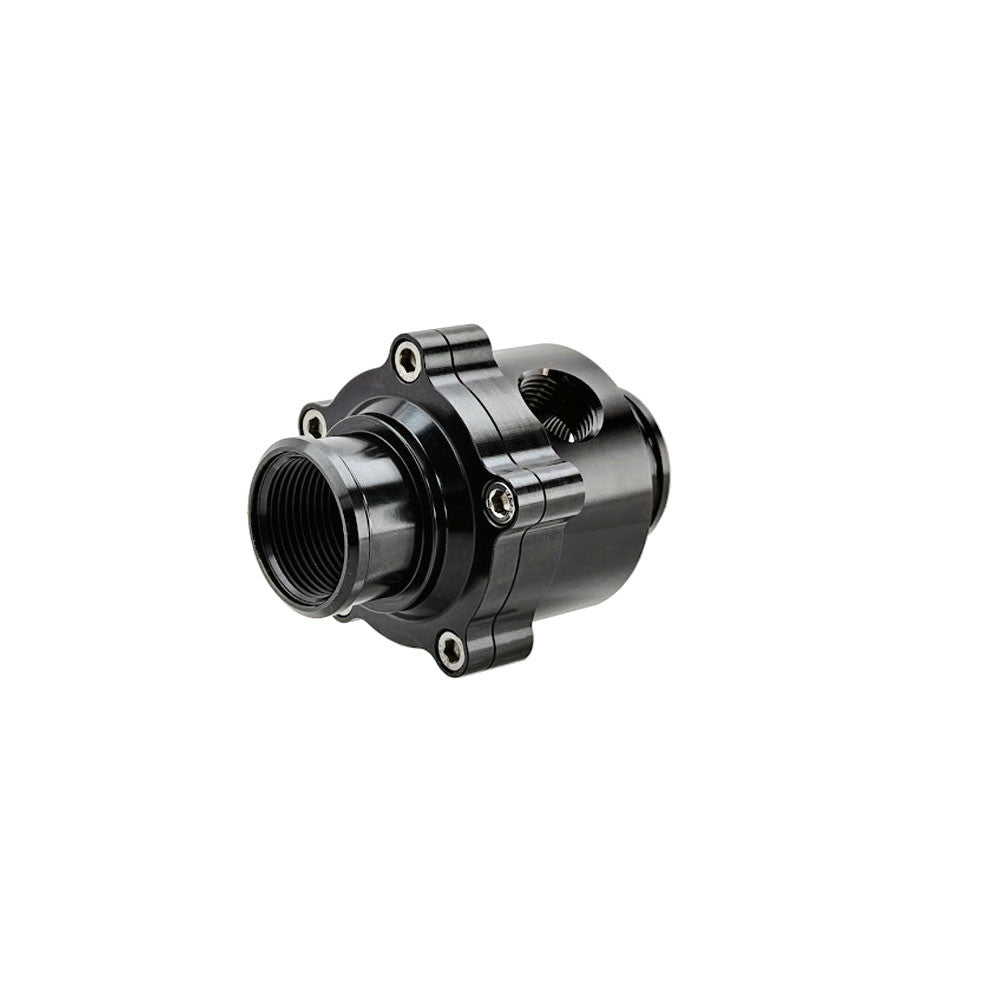

     UPR Billet Inline Thermostat Housing with Bypass Line Port. This housing is to be installed in the upper or lower radiator hose. This makes removing the factory bypass or adding one a breeze. You can also use a 1/2" NPT to 3/8" NPT reducer to install a coolant temp sensor or just plug it if you like.



Simplifies your 4.6/5.4 Modular or 5.0/5.2 Coyote Swap by eliminating all the extra hoses not used in a simple cooling system without an oil cooler or using an electric water pump.



» 1/2" npt Bypass Port

» 4" Long by 3 1/4" Diameter

» Billet CNC Constructed 2pc Body
» 180* Thermostat and Gasket included
» Fits 1.5" Hose and Threaded for -16AN on Inlet/Outlet
» Super easy thermostat removal for servicing or thermostat swaps
» Includes Hardware, Thermostat and Performance Grade Viton O-ring

» Available in Satin or Black Anodized Finish - Select Above



All vehicles

This uses a STANT 45356 thermostat & Gates 33616 rubber gasket or equivalent
