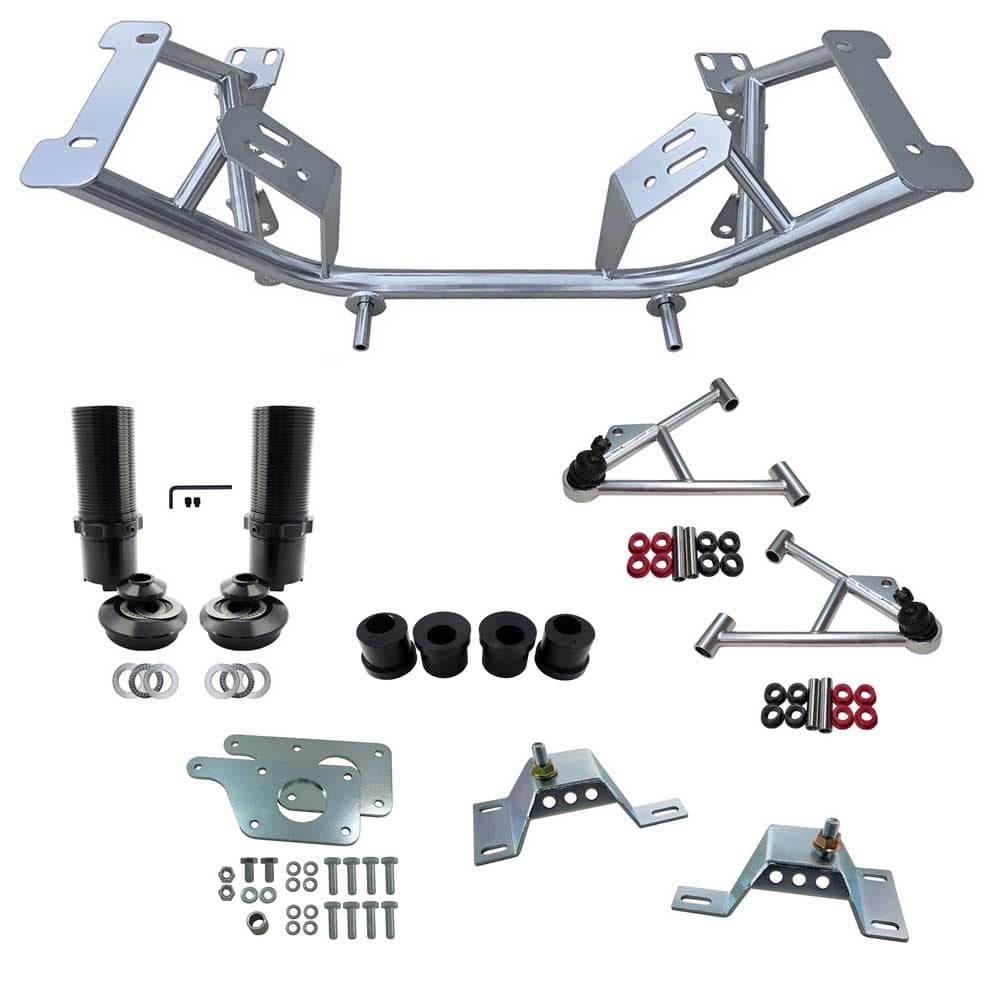

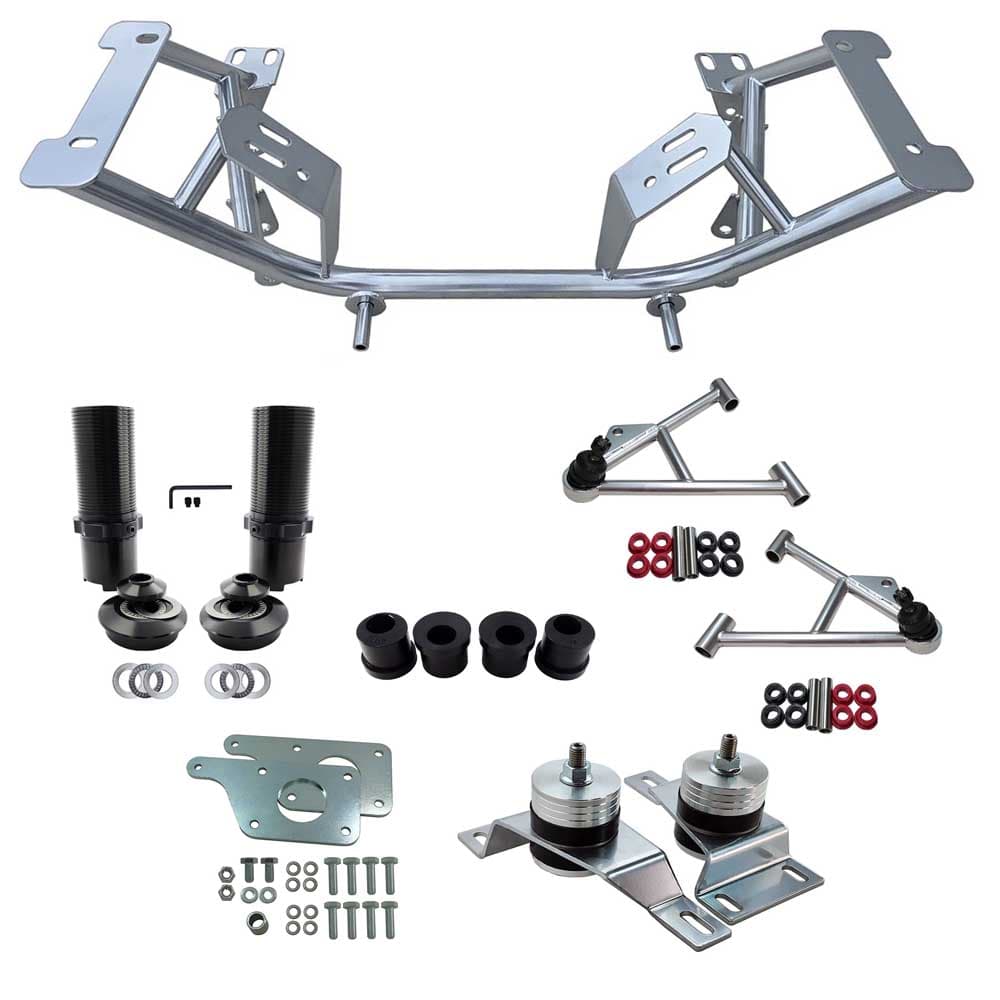

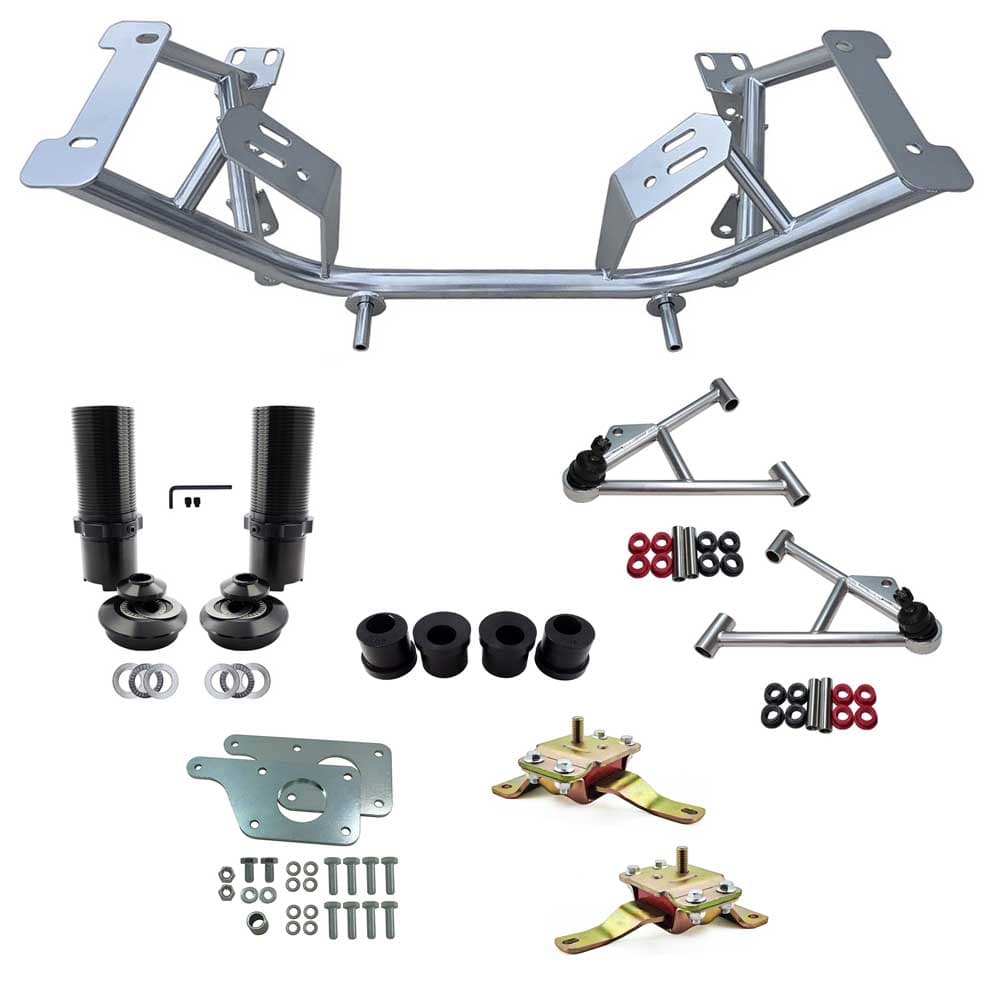

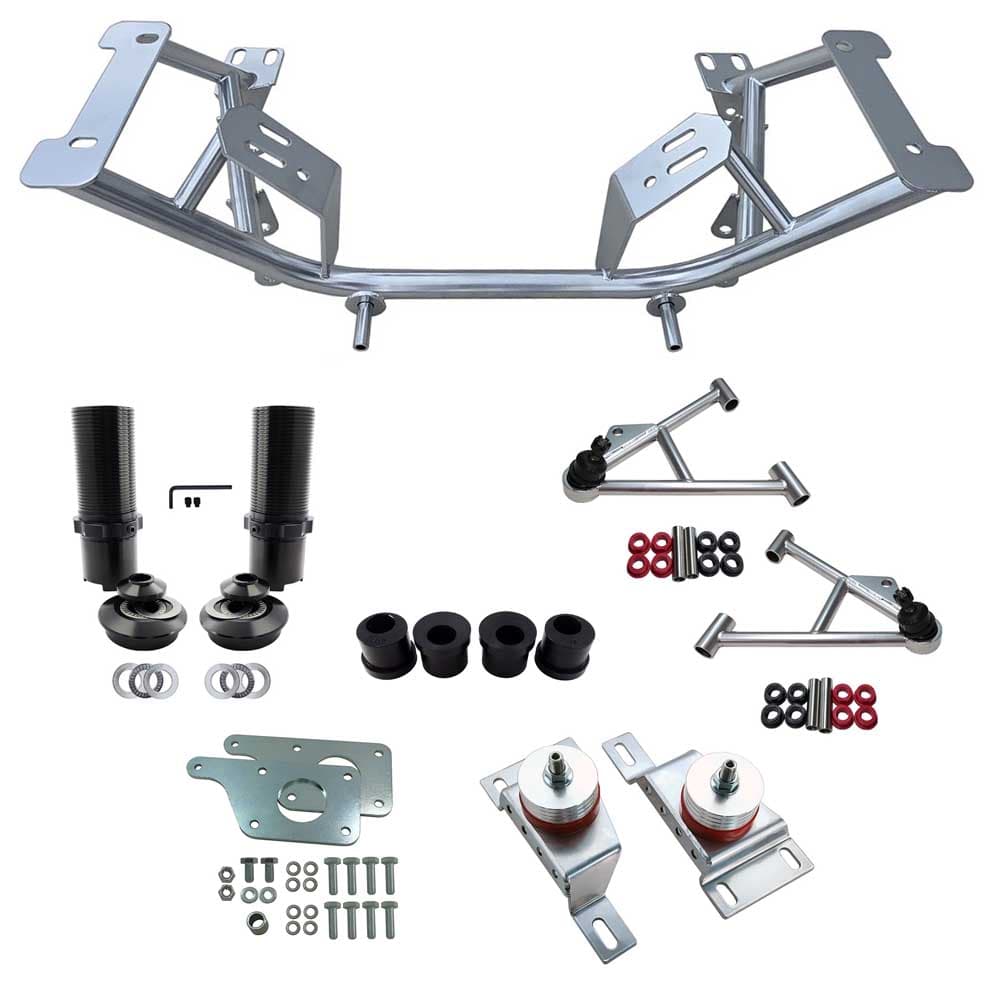

Chrome Moly K-Member Kit LS Swap (fits 79-04 Mustang) UPR

     UPR's all new complete LS Swap Chrome Moly K-member Kit - will save more weight and exceed any strength limitations of mild steel while allowing maximum header and oil pan clearance. This kit was designed for the abuse of hardcore drag race, road race, and Street Enthusiasts. Most importantly it will handle the everyday wear and tear of city & highway streets like that was it's main intent. Includes LS swap adapter plates that allow you to bolt them to any standard LS, 5.3L, 6.0L block and then bolt a 4.6 Mustang Motor Mount to it and use UPRs 4.6 Chrome Moly K-member. This is the Lightest and Strongest package on the Market for LS Mustang swaps. Clears Ultimate Headers Fox Body Swap (Part UH-102601) Longtube headers in 94-04 cars. Includes UPR Coil Over Kit with exclusive designed adjuster nut with new set screw to ensure it never looses it's setting! Also requires no tools to adjust ride height. UPR Recommends the purchase of a bump steer kit with this product. Caster Camber plates are required due to the added stress on the strut tower.



All of our Suspension Products are made with the Highest Quality materials and most expensive components. We spare no expense on our products and always stand behind them with our Lifetime warranty that no one else offers.

Installs in 3-6 hours. If using after market motor mounts the locating tab may have to be trimmed. Must re-use factory hardware.

Optional Parts:

Viking Coil Over Springs: Add Coil Over Springs to your package. Select your spring rate in the dropdown in the option. Read our about our spring rate recommendations below in the Q&A.

Hardware Kit Standard: Grade 10.9 hardware kit includes (4) A-Arm bolts, (8) A-Arm washers, (4) A-Arm nylock nuts, (4) K-member main bolts, (4) K-member main washers, (4) K-member rear pad bolts, (4) K-member rear pad washers.

Hardware Kit Master: Grade 10.9 hardware kit includes (4) A-Arm bolts, (8) A-Arm washers, (4) A-Arm nylock nuts, (4) K-member main bolts, (4) K-member main washers, (4) K-member OEM style J-nuts, (4) K-member rear pad bolts, (4) K-member rear pad washers (2) K-member rear aluminum retaining nut/blocks.

Bolt-On Tow Hooks: Two piece bolt together tow hooks can be added anywhere you like on the main hoop.

» Does NOT Alter Wheelbase
» Silver Powder Coated Finish
» Thicker 1/4" Motor Mount Pads
» Tig Welded in Billet fixtures
» 4130 Seamless Chrome Moly Tubing
» Save 70lbs over stock K-member & A arms
» All Welding & Materials Made in the USA!
» Lightest and Strongest LS1 Mustang Swap K-member
» Includes LS1 Adapter Plate and 4.6 Solid Motor Mounts or upgrade to Non-Adjustable or Adjustable Urethane Motor Mounts
» Now includes Rack Bolts & Offset or Standard Rack Bushings



» Chrome Moly Tubular K-member Silver Powder Coated
» Chrome Moly Tubular A-arms Silver Powder Coated
» Front Coil Over Kit
» LS1 Adapter Plate Kit.
» 4.6 Solid Motor Mount Kit.
