Description

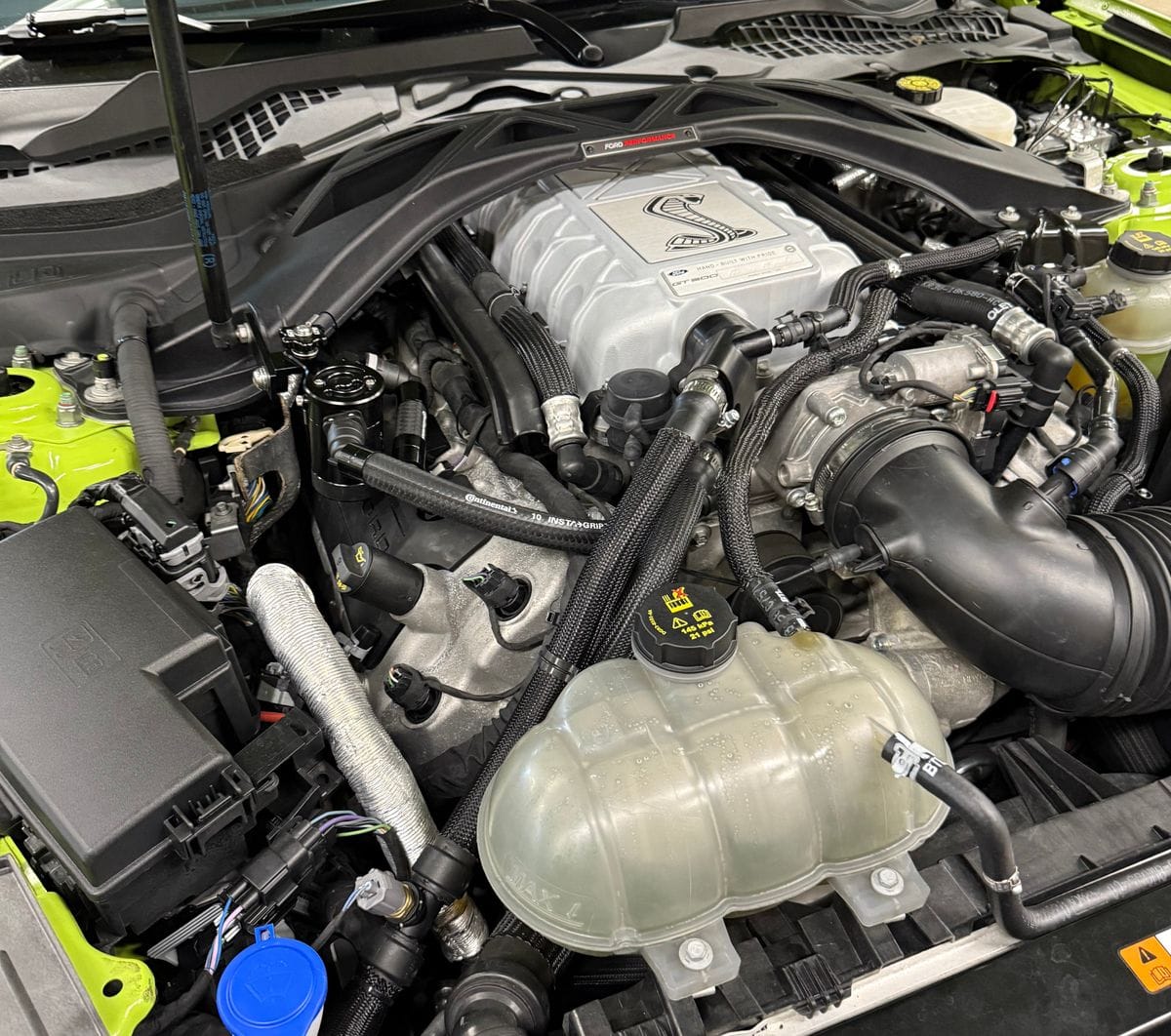

x UPR's Plug N Play™ Compact Catch Can kit for the 2020-2022 Ford Shelby GT500 equipped with the factory supercharger. Our easy to install adjustable mounting bracket is the perfect fit for your Shelby's cramped engine compartment. The mounting location allows room for modifications like larger Whipple superchargers and larger intercooler tubing. With it's extremely efficient compact design and Incredible Looks! We went the extra mile to ensure you get the best quality components. Utilizing Continental Braided Hose and Billet Hose Ends to give you the Strongest and Best Performing Setup Possible. No cheap stock lines that have been cut and spliced on! Your GT500 deserves the BEST! Featuring the New UPR Plug N Play™ Catch Can Fittings (UPR Exclusive Push Button Fittings) So you can remove and empty the catch can without tools. We have hundreds of hours testing our new Oil Separator to ensure the claims and results will exceed your expectations. We even adjusted the angle of the oil containment chamber slightly to clear the valve covers. No cheap looking, basic catch can here! The design of this unit is more along the lines of a True Engineer and cannot be compared or confused with units that have side by inlets and outlets with screen rolled up and shoved in them. The 4 chamber technology in UPR catch cans captures and filters all the oil vapor and trash from getting into your air intake tract. That's the most important reason for a catch can in the first place!
This kit also has the option to add the UPR CSS - Clean Side Separator for the Driver side of the PCV system to make sure you are fully protected at both ends of the PCV system. (Great protection and ideal for all driving situations) Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like. UPR is the largest aftermarket catch can manufacturer in the country. Continually improving our designs to stay ahead of the competition and give you the cutting edge technology of tomorrow today. We are so confident we offer an unconditional warranty on our products to let you know you can always count on UPRproducts.
For a larger capacity catch can for stock GT-500 Mustangs, see part number 5030-262-1-CSS.
UPR Clean Side Separator (CSS):
This Clean Side Catch Separator is especially beneficial to modified vehicles with added Superchargers or Turbo kits. As crankcase pressure builds up under BOOST, it will be forced out of the driver side valve cover fitting. This clean side separator will still allow clean air to enter the crankcase as the factory intended, but will catch oil and impurities when crankcase pressure is high, preventing that gunk from getting into your cold air kit and throttle body. Once normal driving resumes, the Clean Side Separator will allow the oil mist to return to the crankcase.
This UPR Pro Series catch can kit is shipped ready to install even if no upgrades are selected. Upgrades are available to allow you to tailor the kit to fit your needs.
Optional Parts:
Replacement O-Rings:
Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box. 5049 is the main dirty side catch can and 5043 is the clean side separator.
THIS PART DOES NOT CARRY AN CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED
Product Features:
» 4oz Capacity
» Show Quality Finish
» Installs in 15 minutes
» Compact Catch Can measures 2.25" x 3.5"
» Prevents Oil from Entering Intake/Supercharger
» Innovative Diffuser Tube and Chamber
» High Quality CNC Machined Billet Aluminum
» Plug N Play ™ fittings at Can & Engine connections
» 5/8" Oil Resistant Continental Braided Hose included
» Innovative Adjustable Mounting Bracket (360° Rotation)
» Improves Fuel Economy, Throttle Response & Performance
» Available in Satin Silver or Black Finish Select Above
» Compact Catch Can measures 2.25" x 3.5"
» Prevents Oil from Entering Intake/Supercharger
» Innovative Diffuser Tube and Chamber
» High Quality CNC Machined Billet Aluminum
» Plug N Play ™ fittings at Can & Engine connections
» 5/8" Oil Resistant Continental Braided Hose included
» Innovative Adjustable Mounting Bracket (360° Rotation)
» Improves Fuel Economy, Throttle Response & Performance
» Available in Satin Silver or Black Finish Select Above
Includes:
» OEM style 5/8" Factory Connectors
» 5/8" Continental Braided Hoses
» Billet Hose Ends with Clamps
» Billet Adjustable Mounting Bracket
» Plug N Play ™ quick release connectors & billet fittings
» Clean Side Separator available - See Dropdown options
» 5/8" Continental Braided Hoses
» Billet Hose Ends with Clamps
» Billet Adjustable Mounting Bracket
» Plug N Play ™ quick release connectors & billet fittings
» Clean Side Separator available - See Dropdown options
Fits These Vehicles:
2020 2021 2022 Ford Shelby GT500 Mustang S550 Predator 5.2 with factory Shelby supercharger
Made in the USA!
Q & A
Question: What is the problem with your PCV system ?
Answer: The Positive Crankcase Ventilation (PCV) system is used to recycle the gases that leak or "blow-by" the your engines piston rings and create a positive pressure in the crankcase. By venting these gases along with oil mist/vapor from the crankcase and route it back into the intake manifold so it can be burned off.
This is a poor fix from automobile manufacturers, because over time the excess oil vapor collects along the inside of the intake tract and forms a "sludge". This leads to a variety of issues including carbon build up, retarded timing, detonation, power loss and even engine failure.
UPR s fix for the PCV system used on many engines for reducing toxic gases from being released into the atmosphere and eliminating positive crankcase pressure / Blow-By.
Question: What does a UPR Catch Can do ?
Answer: UPR s Billet Catch Can / oil-air separator will condense and collect the oil vapor before it has any chance to reach the intake tract. As the gas and oil vapor enters UPR s can they pass through a Chambered filtering system that cools the oil vapor and gives it something to adhere to.
Then the oil forms into droplets and collect in the bottom of the UPR Catch Can so that they can later be drained. This is where the additional Chambered filtering system comes into play allowing only the clean air to pass through so it can eliminate unwanted blow by.
All engines have blow by otherwise there would be no need for a PCV system on your engine. PCV = Positive Crankcase Valve, which eliminates Positive Crankcase Pressure. UPR s Catch Can has become one of the most widely used and recommended cures for just about every application.
The engine size and horsepower level is not relevant to the performance of the UPR Catch Can. UPR s Catch Can has become a cornerstone by improving the Performance and Economy on any vehicle you install it on.
Answer: The Positive Crankcase Ventilation (PCV) system is used to recycle the gases that leak or "blow-by" the your engines piston rings and create a positive pressure in the crankcase. By venting these gases along with oil mist/vapor from the crankcase and route it back into the intake manifold so it can be burned off.
This is a poor fix from automobile manufacturers, because over time the excess oil vapor collects along the inside of the intake tract and forms a "sludge". This leads to a variety of issues including carbon build up, retarded timing, detonation, power loss and even engine failure.
UPR s fix for the PCV system used on many engines for reducing toxic gases from being released into the atmosphere and eliminating positive crankcase pressure / Blow-By.
Question: What does a UPR Catch Can do ?
Answer: UPR s Billet Catch Can / oil-air separator will condense and collect the oil vapor before it has any chance to reach the intake tract. As the gas and oil vapor enters UPR s can they pass through a Chambered filtering system that cools the oil vapor and gives it something to adhere to.
Then the oil forms into droplets and collect in the bottom of the UPR Catch Can so that they can later be drained. This is where the additional Chambered filtering system comes into play allowing only the clean air to pass through so it can eliminate unwanted blow by.
All engines have blow by otherwise there would be no need for a PCV system on your engine. PCV = Positive Crankcase Valve, which eliminates Positive Crankcase Pressure. UPR s Catch Can has become one of the most widely used and recommended cures for just about every application.
The engine size and horsepower level is not relevant to the performance of the UPR Catch Can. UPR s Catch Can has become a cornerstone by improving the Performance and Economy on any vehicle you install it on.
