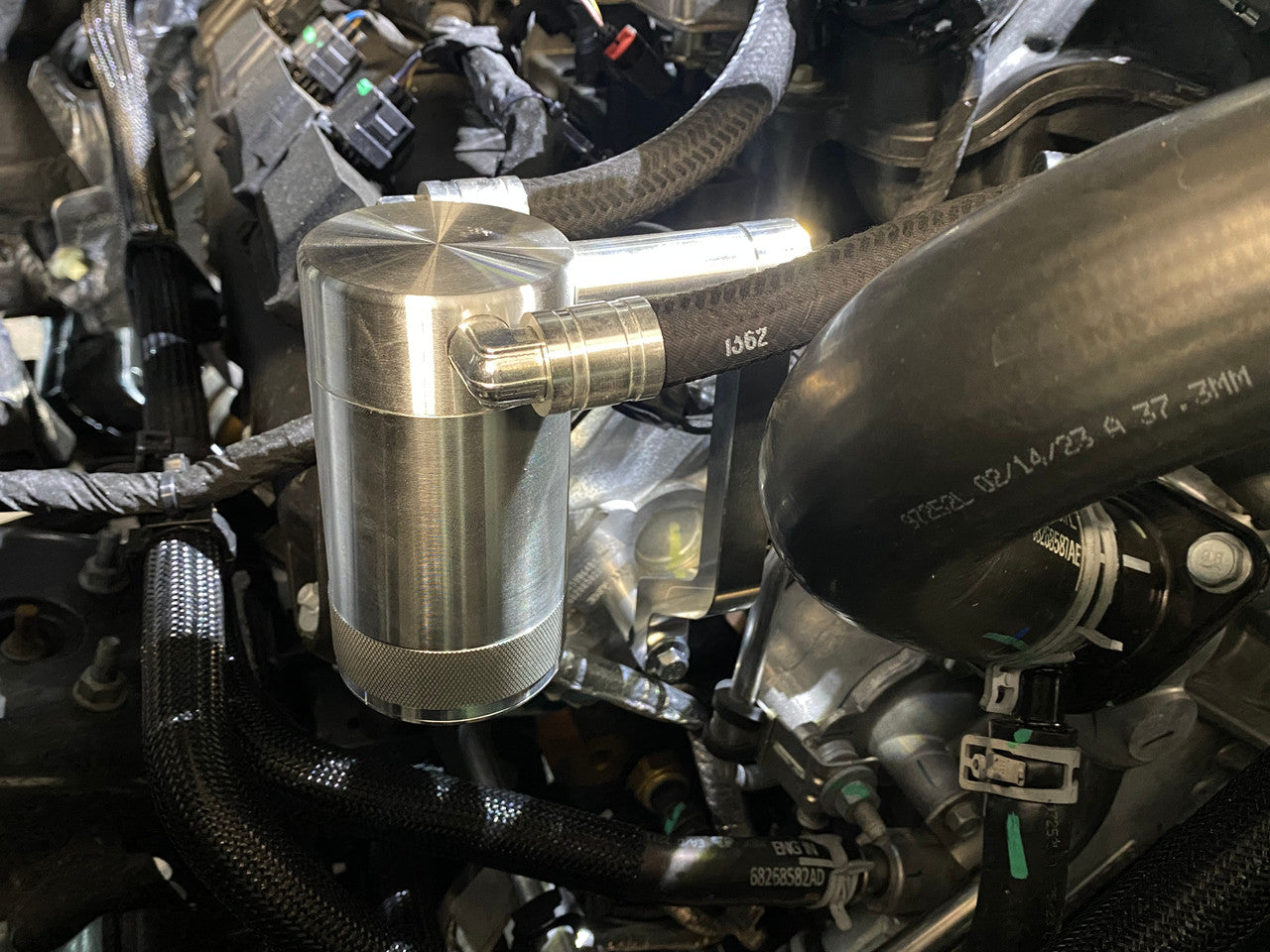

xBrand New UPR Signature Series Billet Catch Can System with Z Bracket for your 2009 to Present Dodge Ram. This Catch Can was developed to out perform all the other 2 chamber catch cans with a patented internal diffuser system that forces the oil to be released into the catch can from a lower chamber then the fresh air can exit through the upper chamber. This is because all the traditional 2 chamber catch cans have two chambers side by side and with a screen that separates them. Side by Side chambers with a simple screen or honeycomb filter allow oil to be sucked right across and out the exit port of the catch can.
Most of the top brands out there are what is called 2 chamber pull through catch cans as they all allow as much oil to be pulled through them as they collect and this is why they can have such small oil capacities and be drained so infrequently. With the UPR Catch Can you have to check them every 500 miles to maintain the oil level. Whereas other catch cans usually say to check them every 2000 to 3000 miles and you should be fine. UPR takes pride in their products and always strives to deliver the best looking and performing products.
All UPR Catch Cans are machined from 6061 Billet Aluminum and use forged aluminum fittings along with Viton O-rings and the highest quality Braided Hoses on every model. We don't sell you a catch can and with all the rubber or plastic hoses and plastic fittings and then tell you to get the best you have to upgrade your hose and fittings. With UPR it all comes STANDARD at no extra cost!
The UPR Oil Catch Can features a three chamber design CNC machined from 6061 Billet Aluminum unlike some of our competitors models that are single chamber tanks that don't properly trap the oil or debris.
You will see improved MPG and Improved Performance throughout the Entire RPM range.
Installs in 20-30 minutes or less.
Optional Parts:
SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it. If you select this option you can not also use the Drain Line kit below.
Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.
Replacement O-Rings:
Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box.
THIS PART DOES NOT CARRY AN CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED
Product Features:
» Show Quality Finish
» 1/2" Nickel 90* fittings
» Can measures 4.75" x 2.5"
» Easy 20-30 minute install

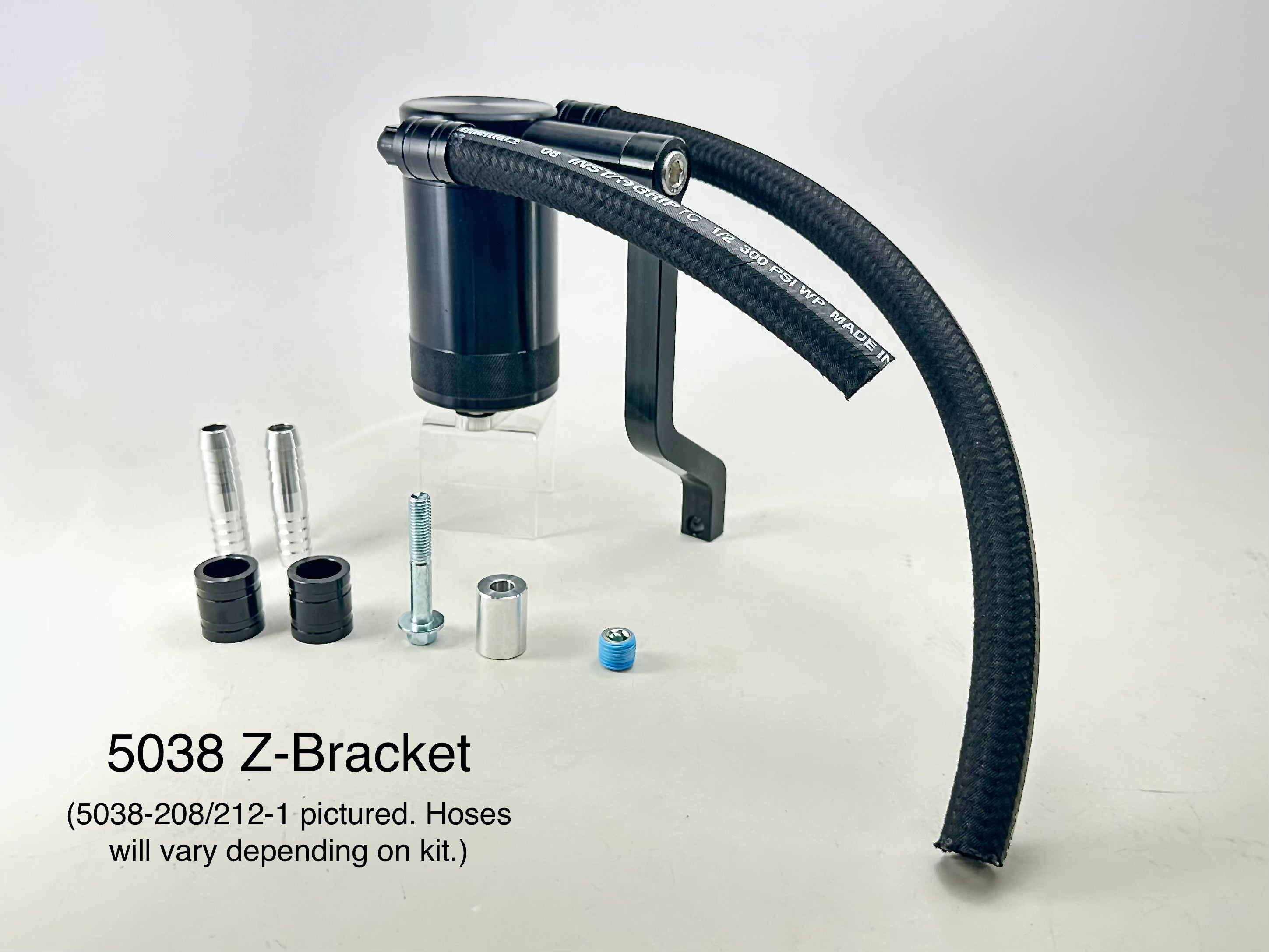

» Includes Z Mounting Bracket
» 1/2" Oil Resistant Hose included
» Prevents Oil from Entering Intake
» Improves Fuel Economy & Performance
» Stainless Steel Mesh Filter Material
» High Quality CNC Machined Billet Aluminum
» Available in Satin or Black - Select Finish Above
» 1/2" Nickel 90* fittings
» Can measures 4.75" x 2.5"
» Easy 20-30 minute install
» Includes Z Mounting Bracket
» 1/2" Oil Resistant Hose included
» Prevents Oil from Entering Intake
» Improves Fuel Economy & Performance
» Stainless Steel Mesh Filter Material
» High Quality CNC Machined Billet Aluminum
» Available in Satin or Black - Select Finish Above
Fits These Vehicles:
2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 Dodge RAM 1500 1500 Classic 2500 3500 5.7L Hemi Engines
Made in the USA!
Q & A
Question: Does your hose fall apart or collapse?
Answer: No we've upgraded to Oil Resistant Performance Hose, not heater hose or rubber hose.
Question: Does your Billet Catch Can Kit come with a warranty?
Answer: Yes we stand behind all of products and never make excuses.
Question: Why is your Billet Catch Can priced so much lower than the competition?
Answer: Volume in production guarantee's the best deals on certified materials and US labor.
